WEATHERPROOF TWO-WAY SPEAKER

• 500 W RMS power handling

• 131 dB max SPL

• 80 Hz ÷ 20000 Hz frequency range

• 2 x 8" neodymium woofer, 2.5" v.c.

• 2 x 1.75" v.c. neodymium compression driver

• 90° x 20° constant directivity

• Weatherproof IP55 cabinet with UV protection

• Aluminum grille

• AISI 316L stainless steel bracket

• Amphenol IP67 4 pole input connector

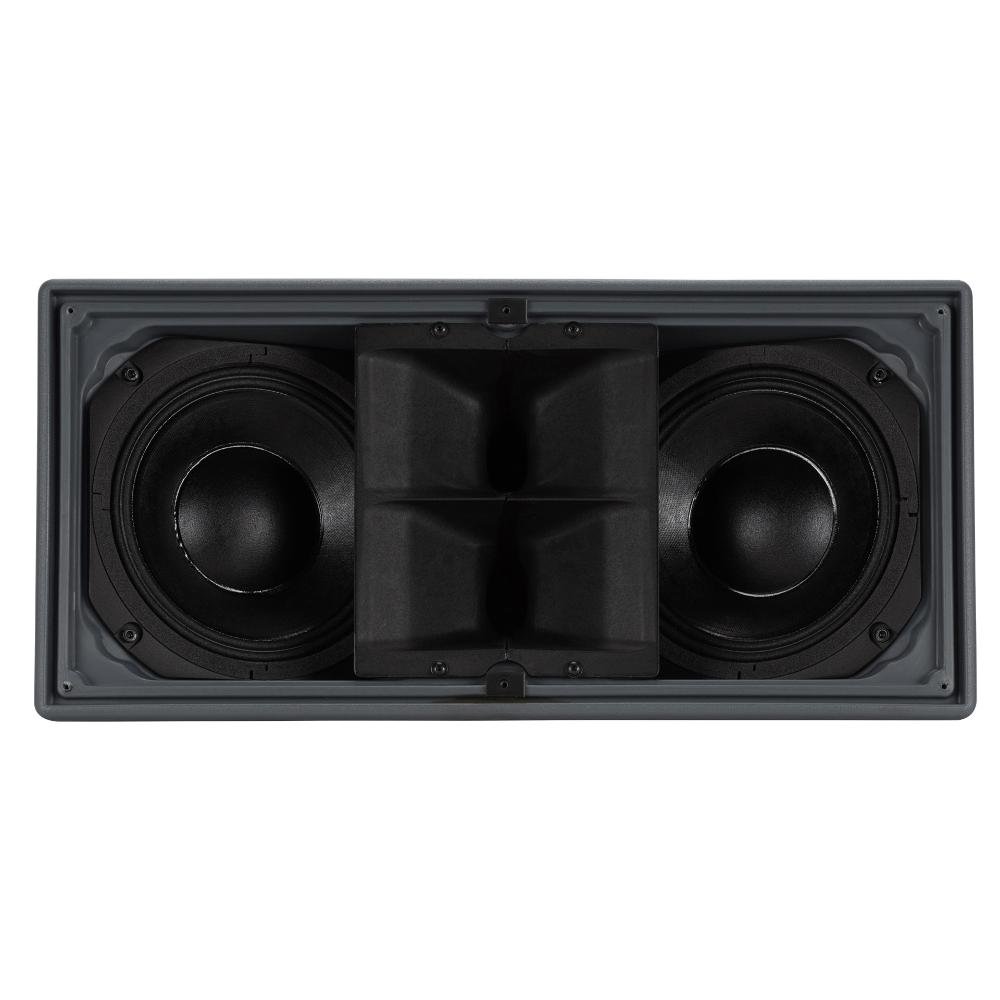

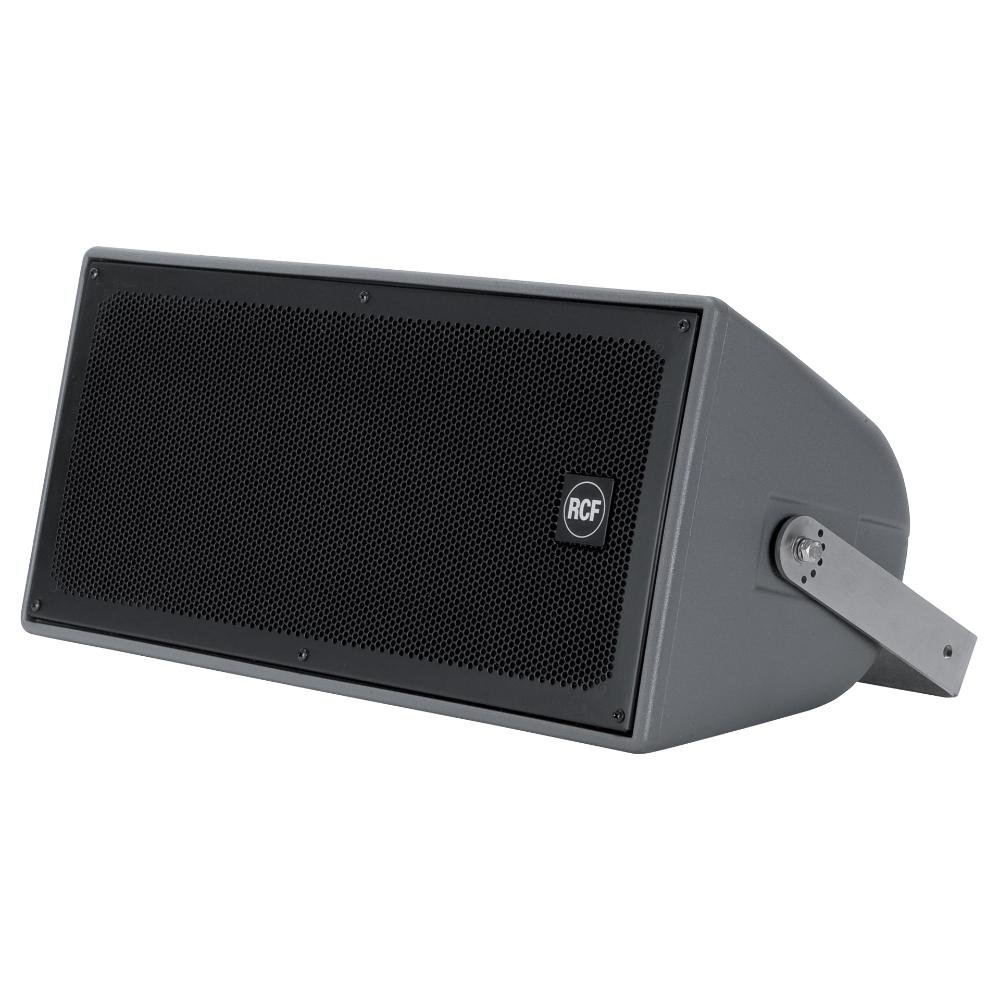

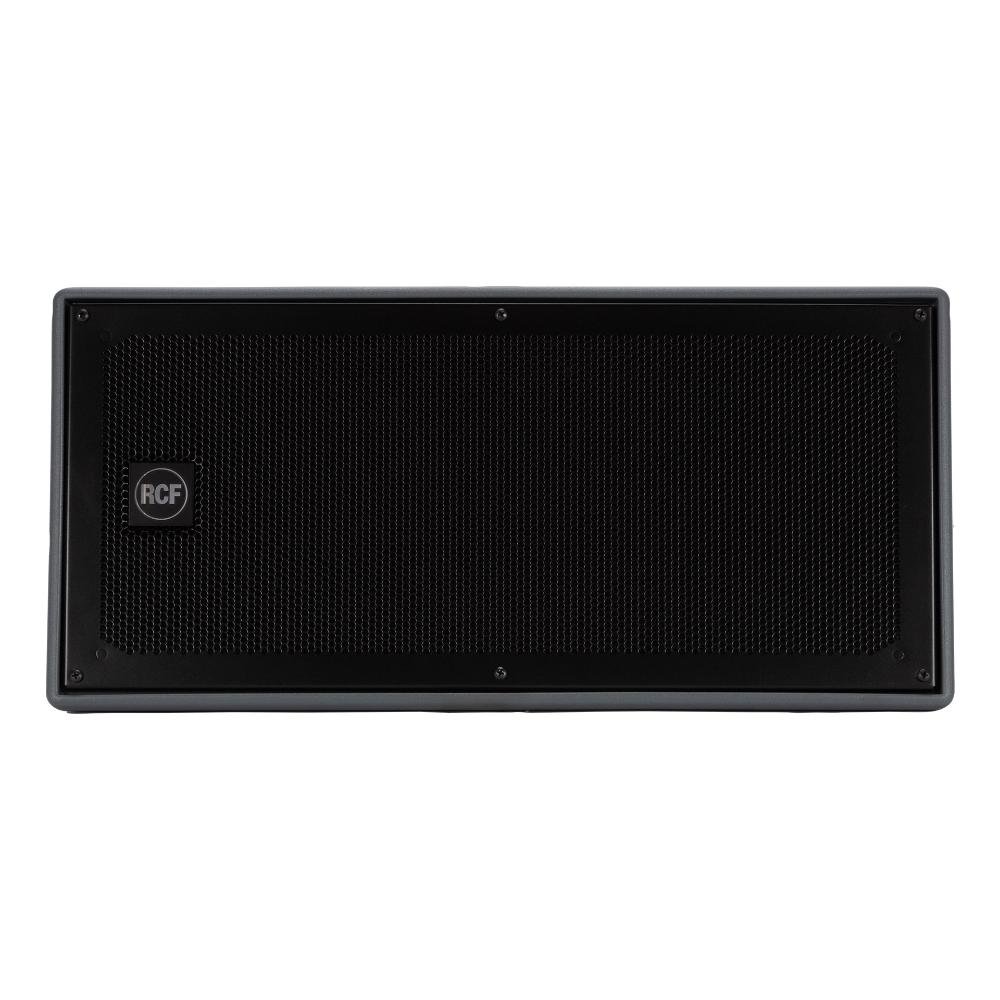

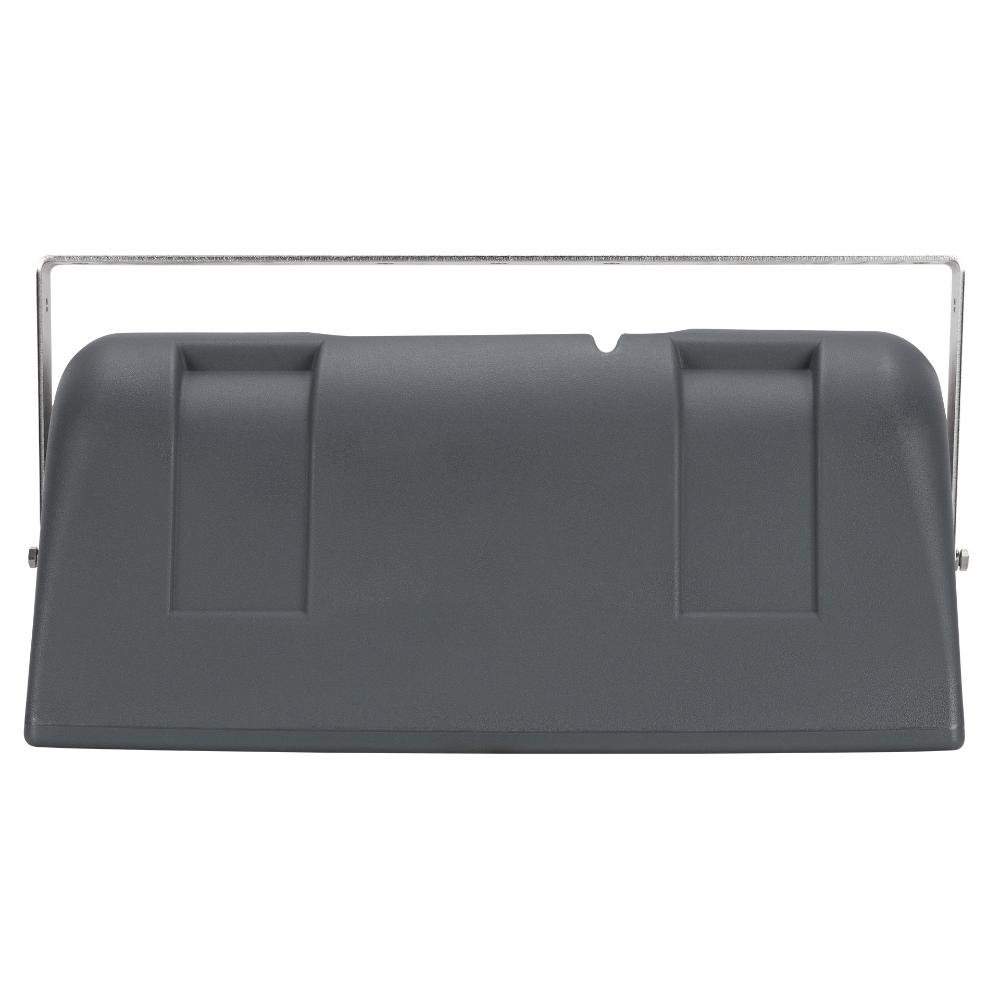

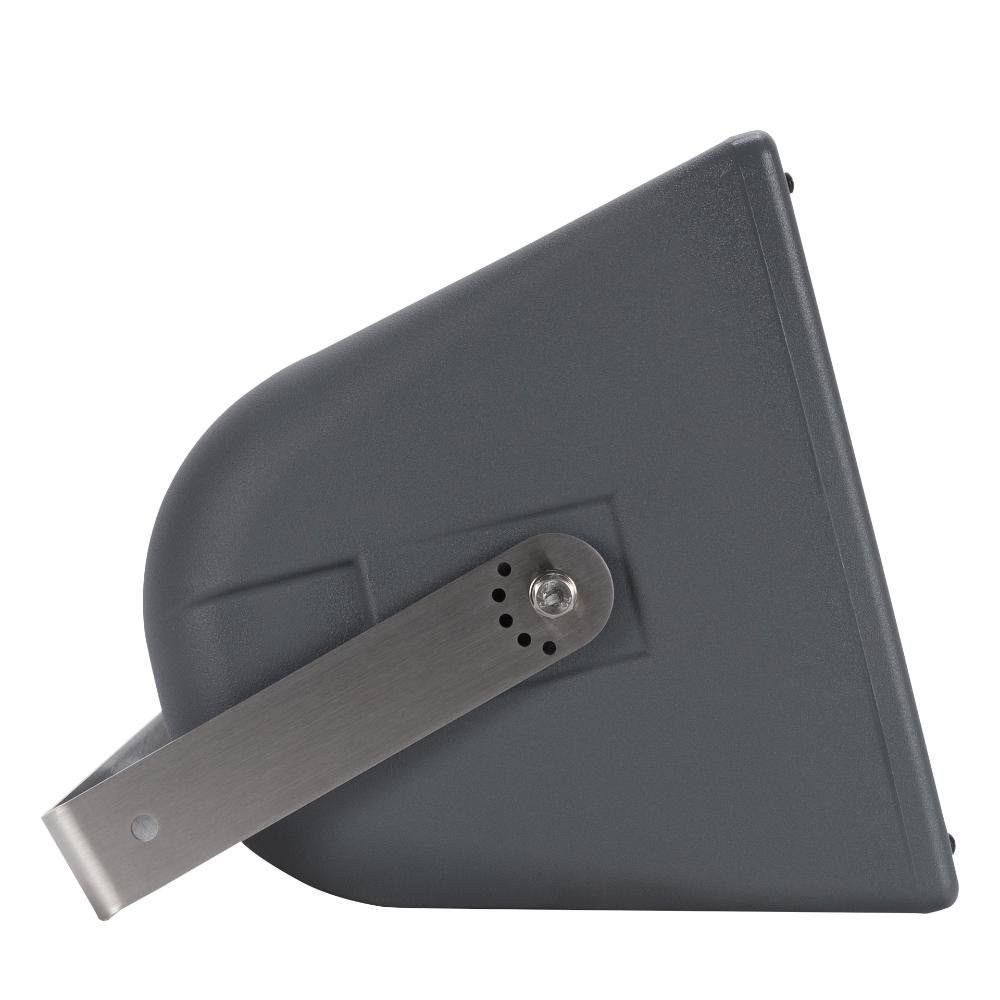

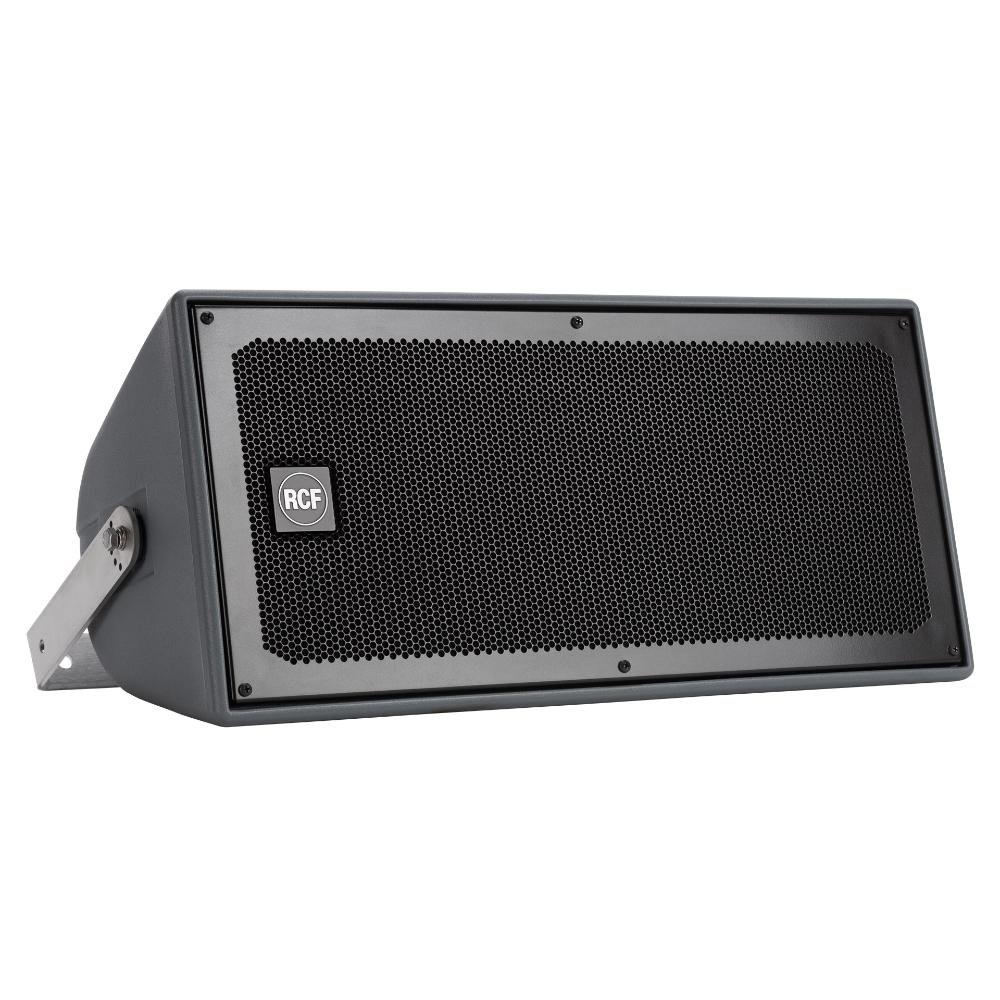

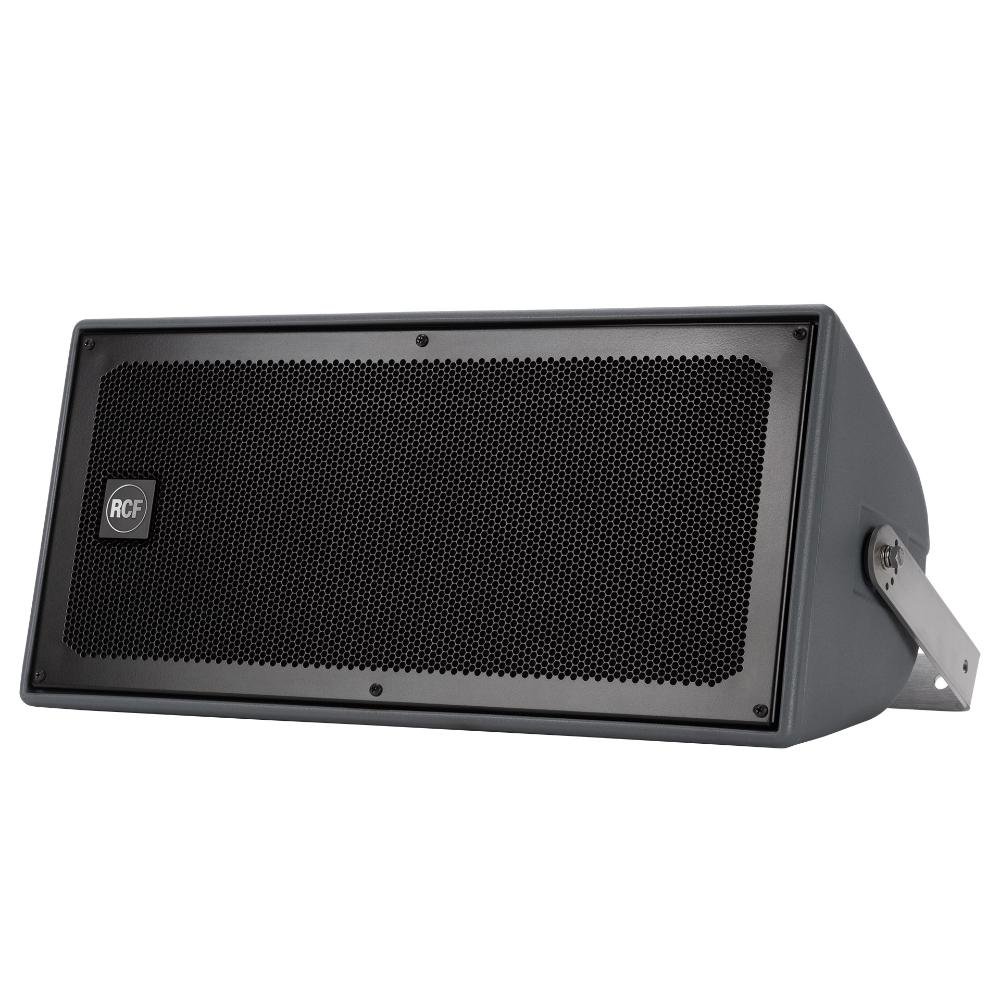

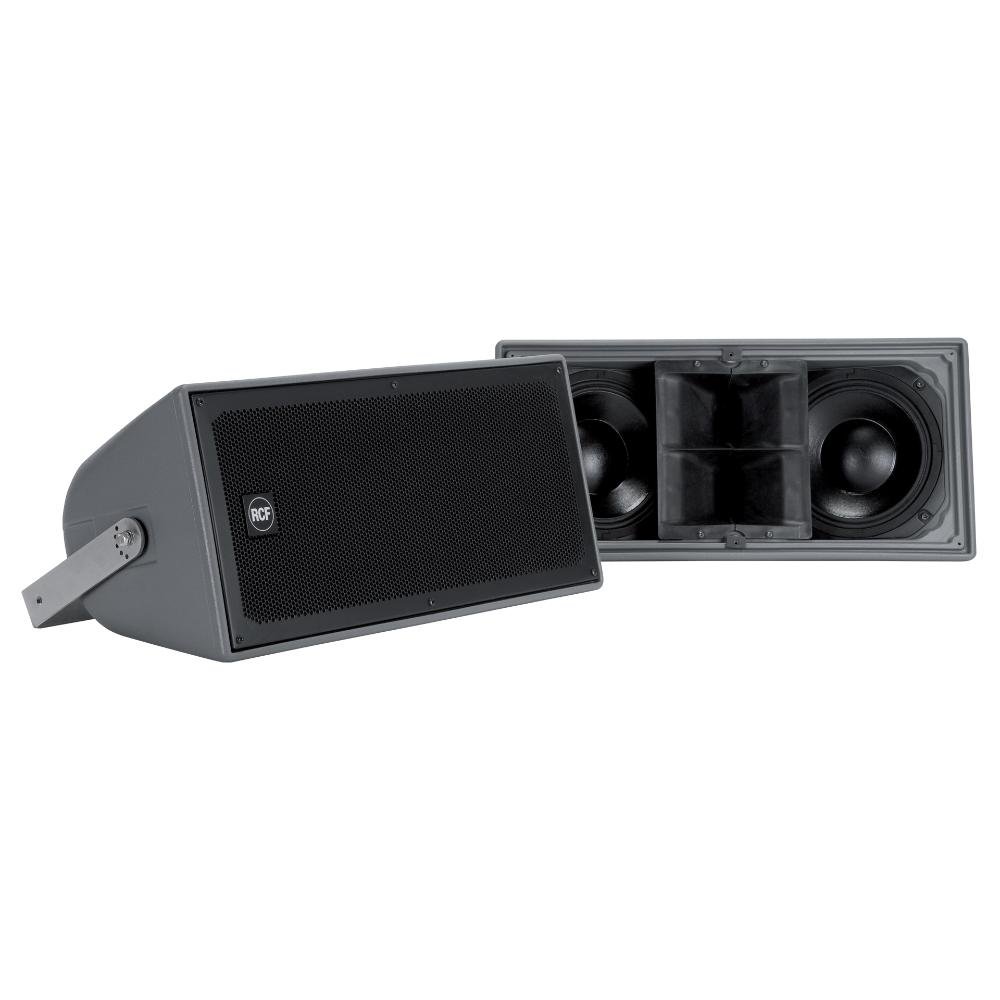

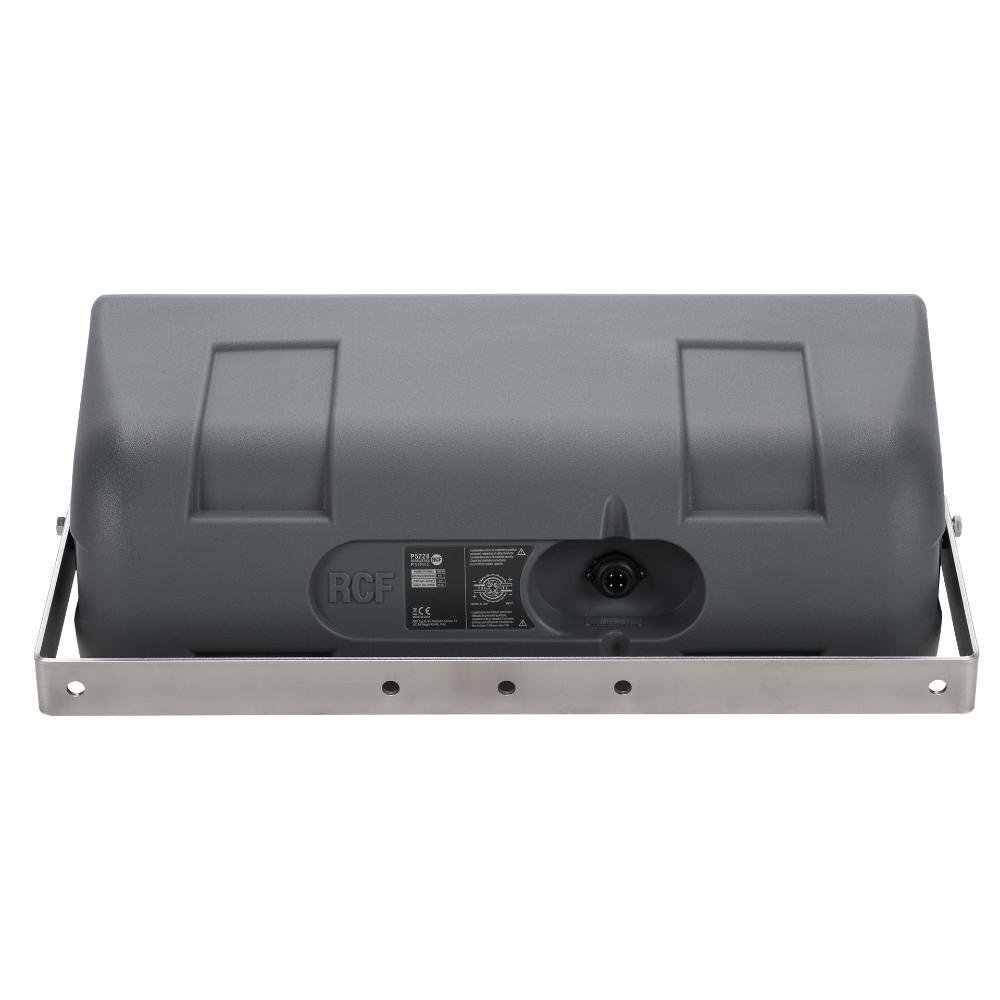

The P 5228-L is a weatherproof full range, two-way speaker, suitable for a variety of professional applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, highly controlled 20° vertical coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion with consistent directivity. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and a corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille is powder coated with water-repellent backing material and has a rotatable logo plate.
