WEATHERPROOF TWO-WAY SPEAKER

• 400 W RMS power handling

• 129 dB max SPL

• 80 Hz ÷ 20000 Hz frequency range

• 2 x 8" neodymium woofer, 2.5" v.c.

• 2.5" v.c. neodymium compression driver

• 110° x 60° constant directivity

• Weatherproof IP55 cabinet with UV protection

• Aluminum grille

• AISI 316L stainless steel bracket

• Amphenol IP67 4 pole input connector

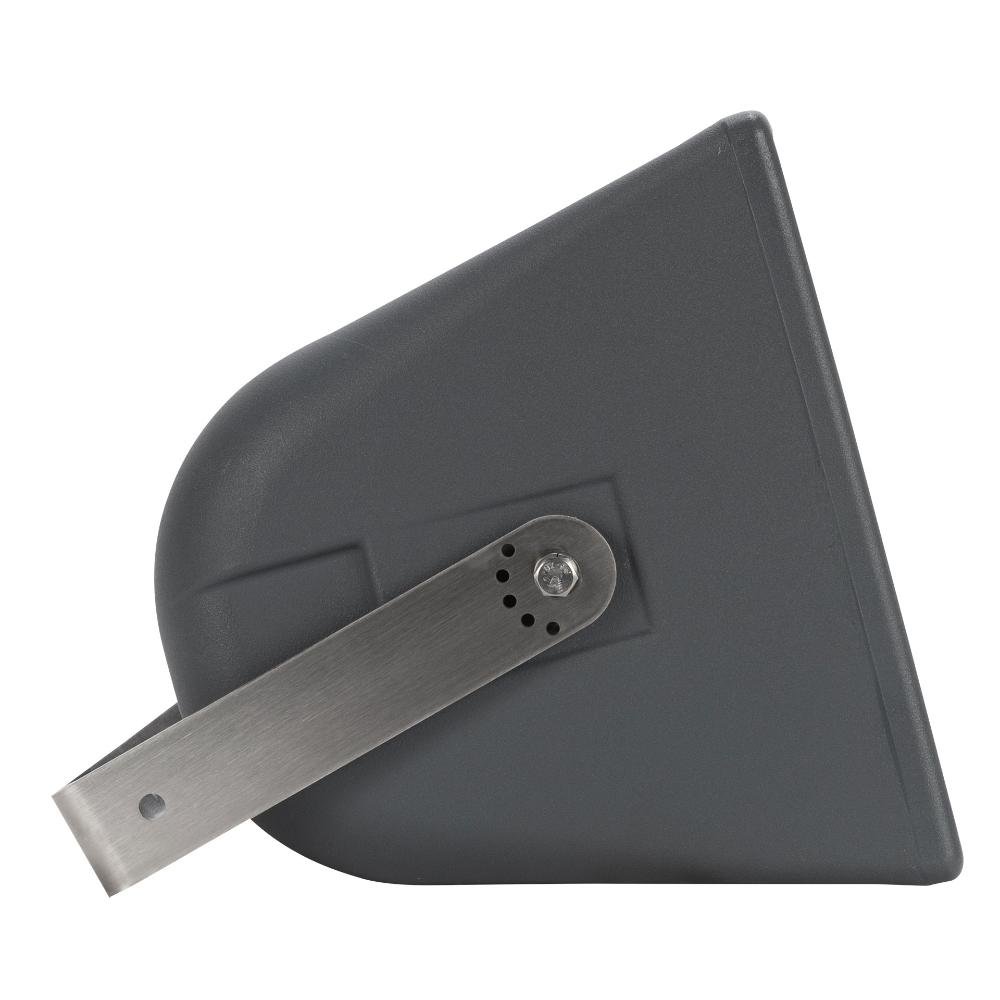

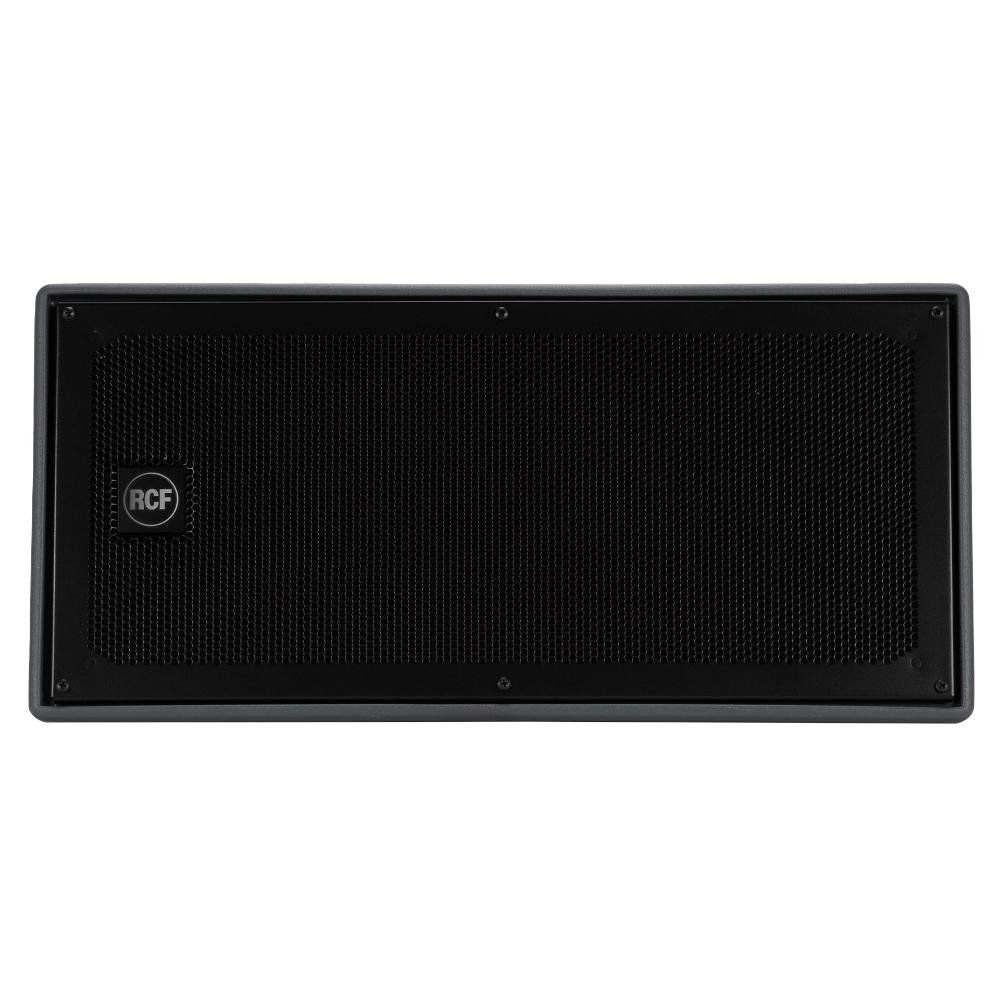

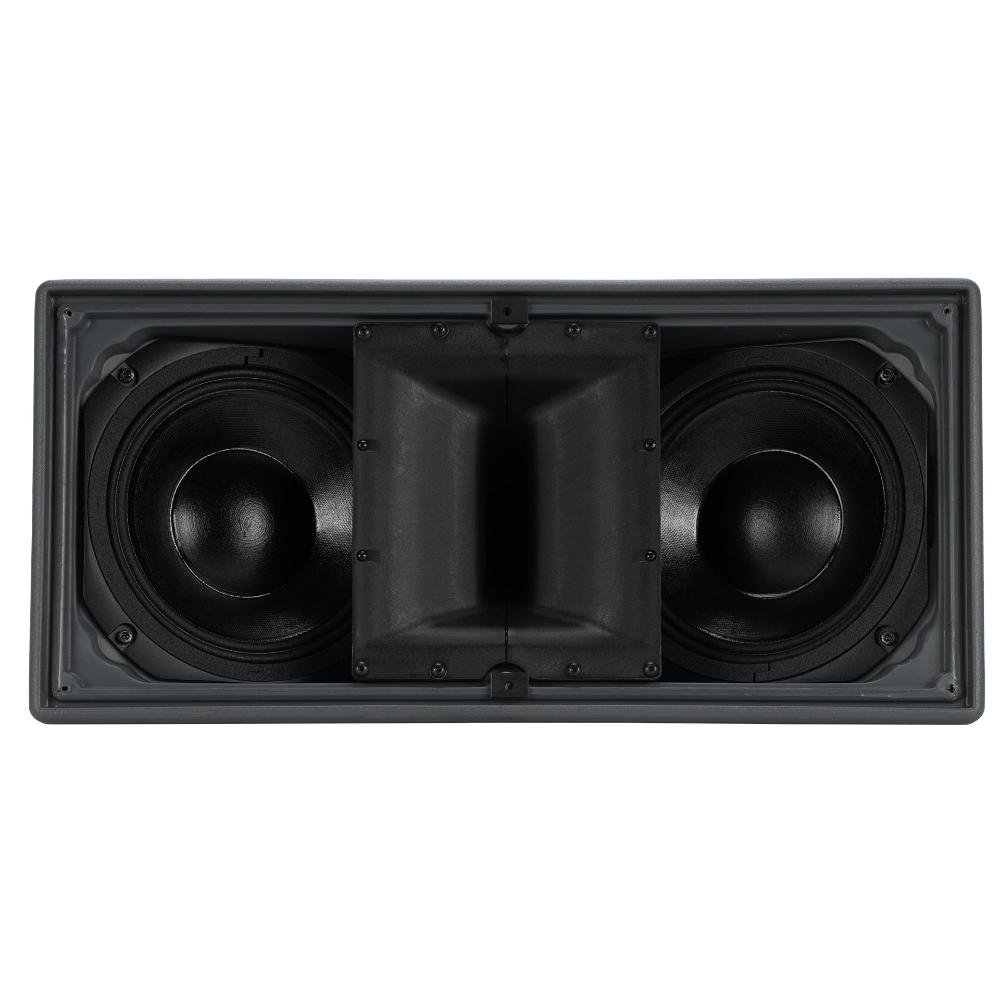

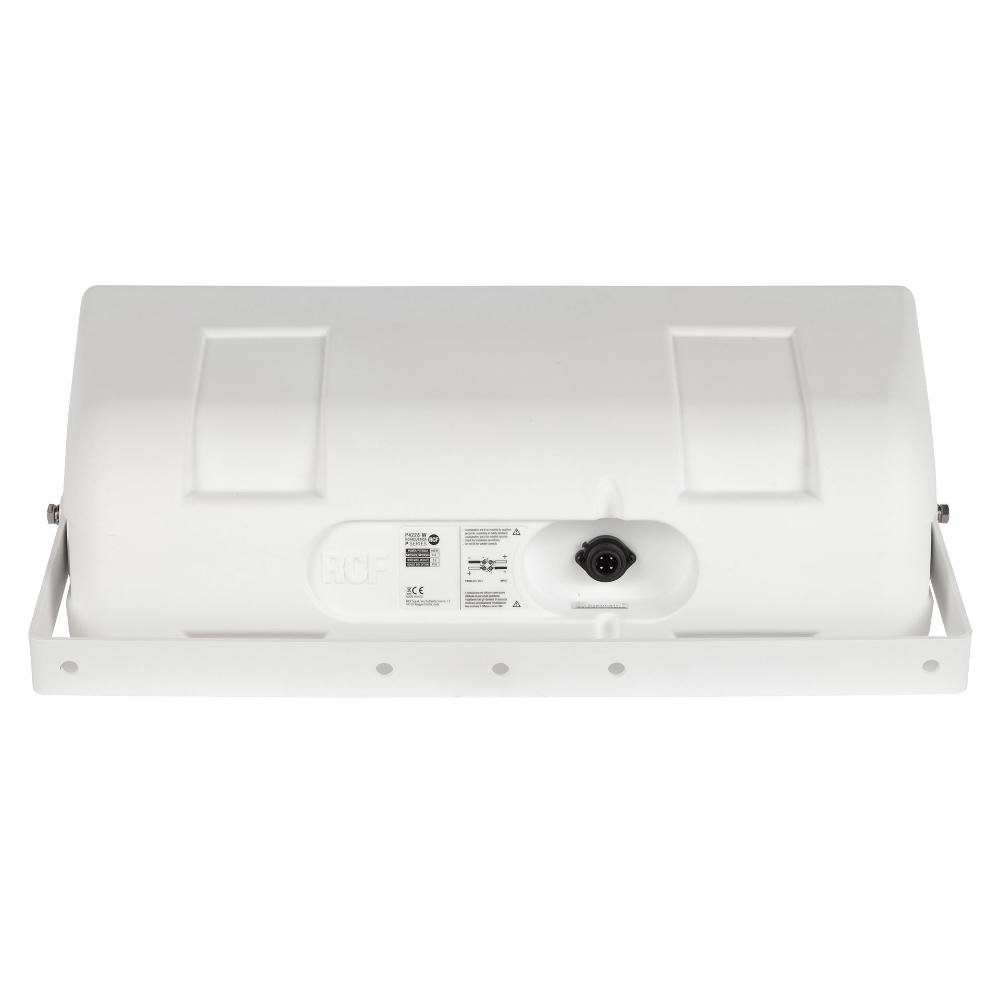

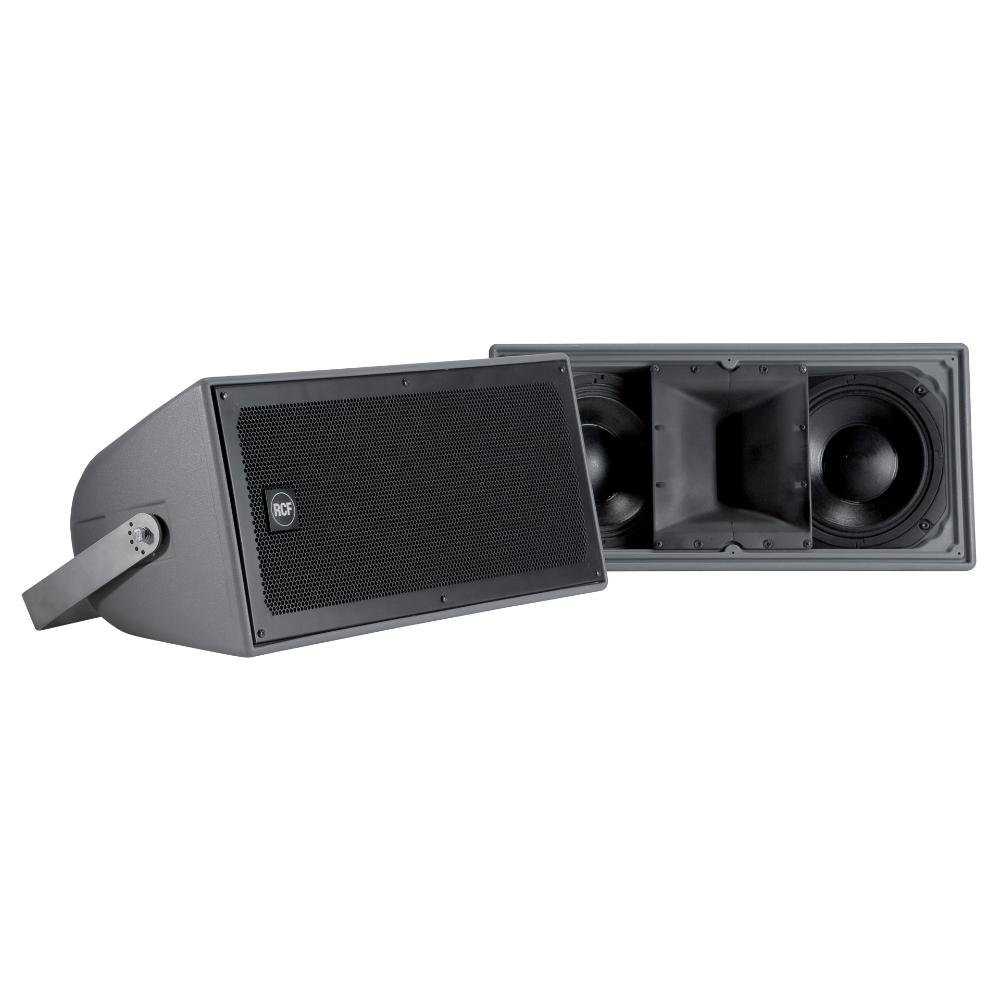

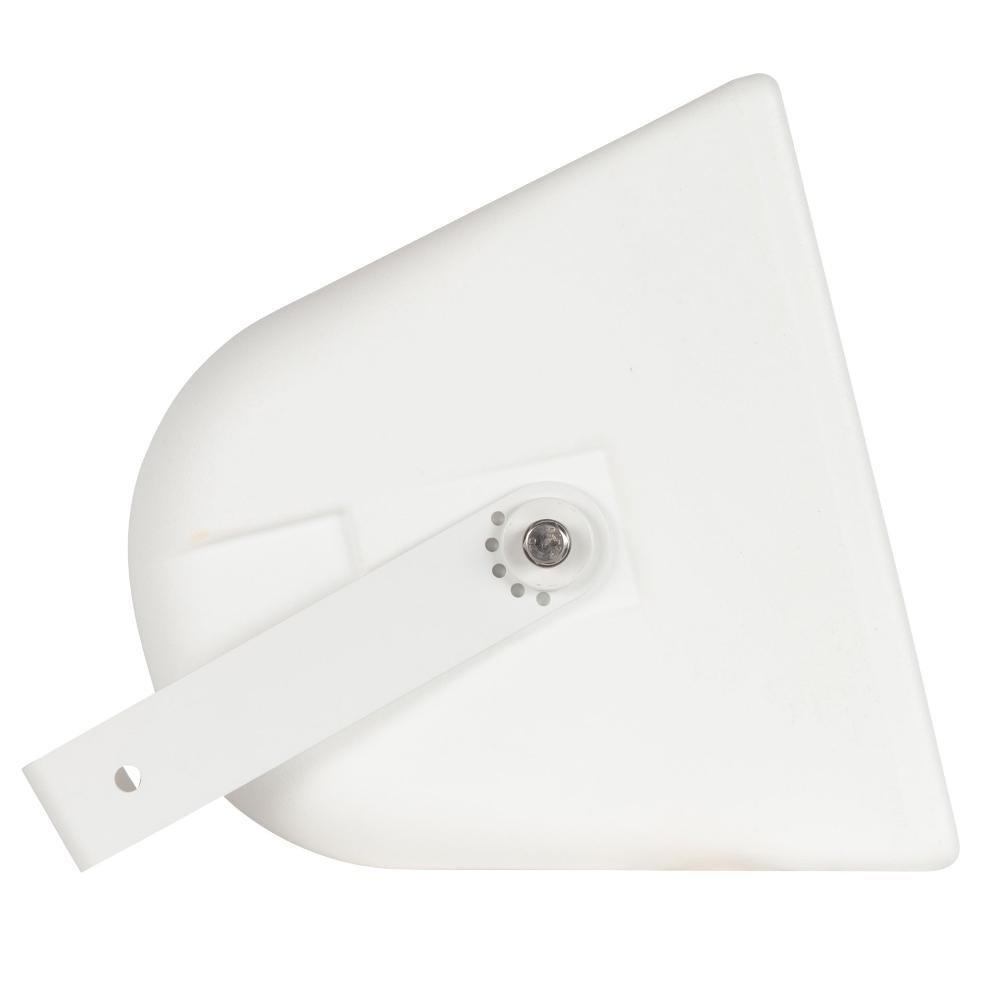

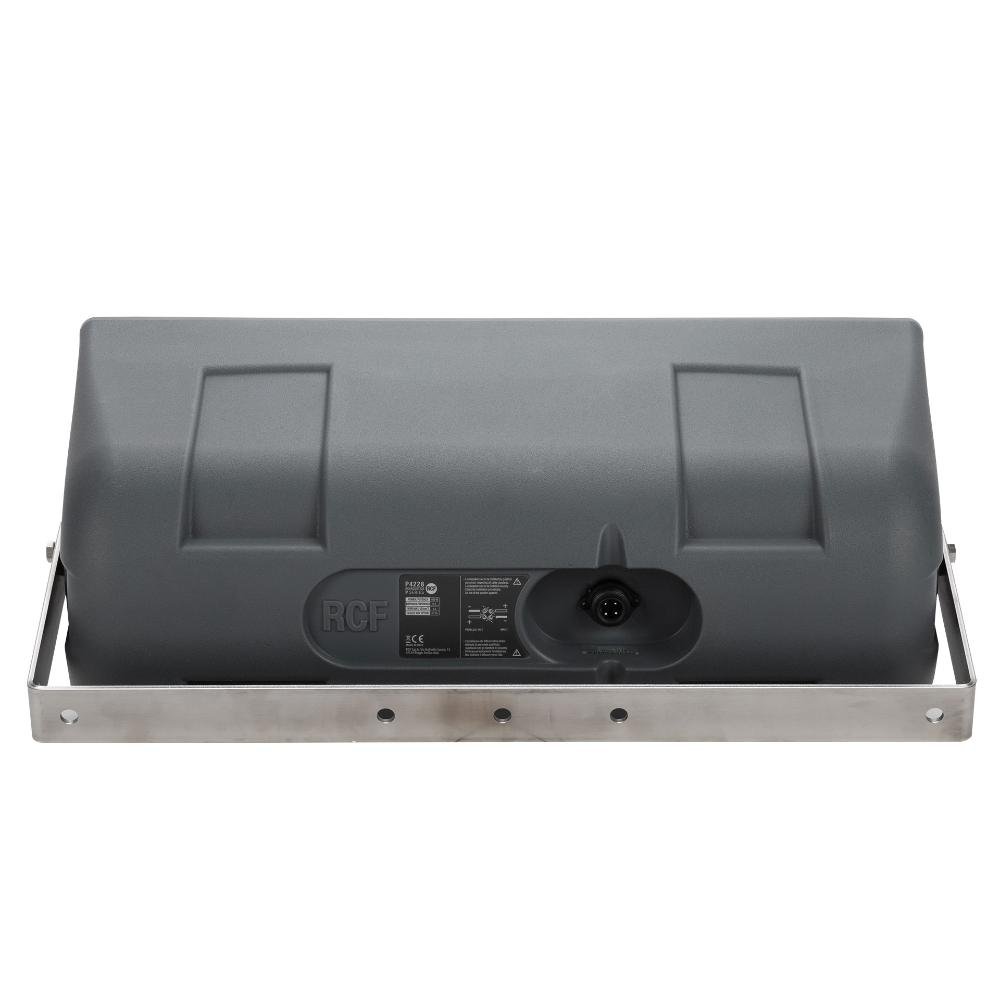

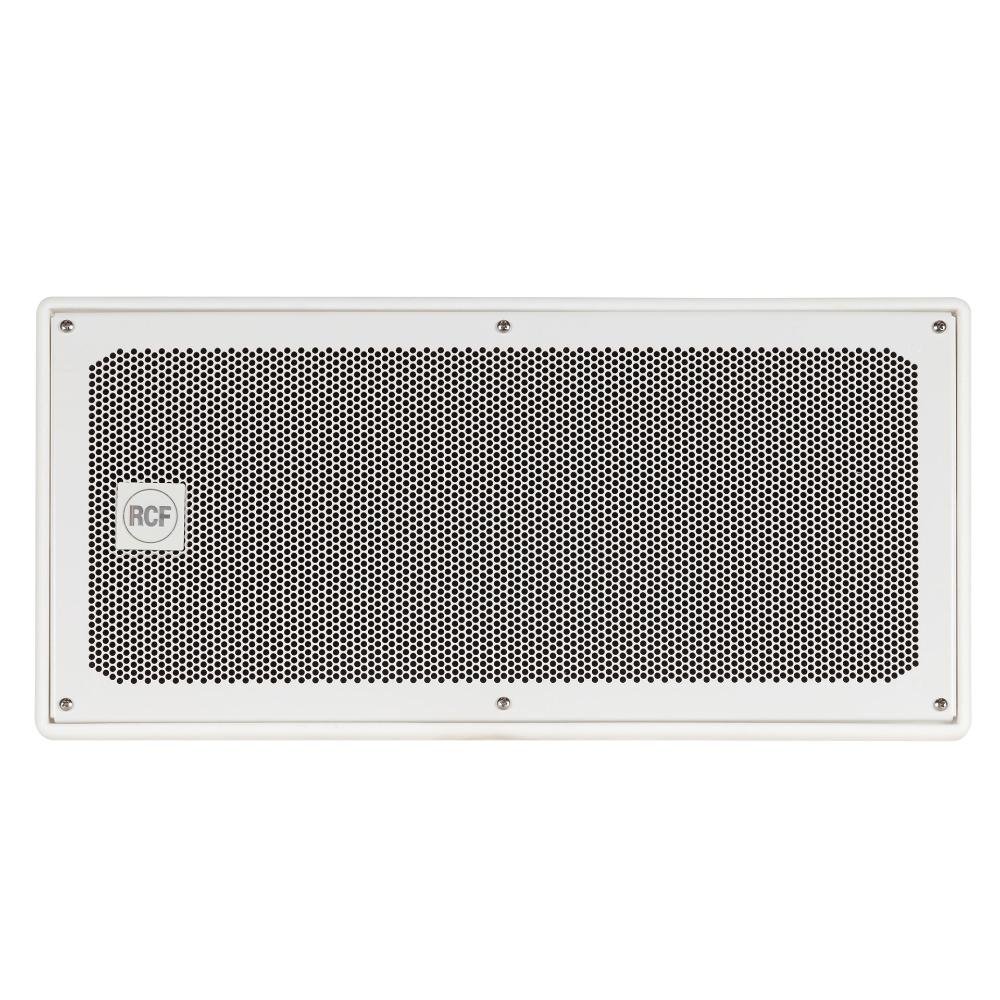

The P 4228 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes a constant directivity CMD horn, loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
