WEATHERPROOF COAXIAL TWO-WAY SPEAKER

• 300 W RMS power handling

• 129 dB max SPL

• 75 Hz ÷ 20000 Hz frequency range

• 15" neodymium woofer, 2.5" v.c.

• 1.75" v.c. neodymium compression driver

• 90° x 60° constant directivity

• Weatherproof IP55 cabinet with UV protection

• Aluminum grille

• AISI 316L stainless steel bracket

• Built in 100V line transformer

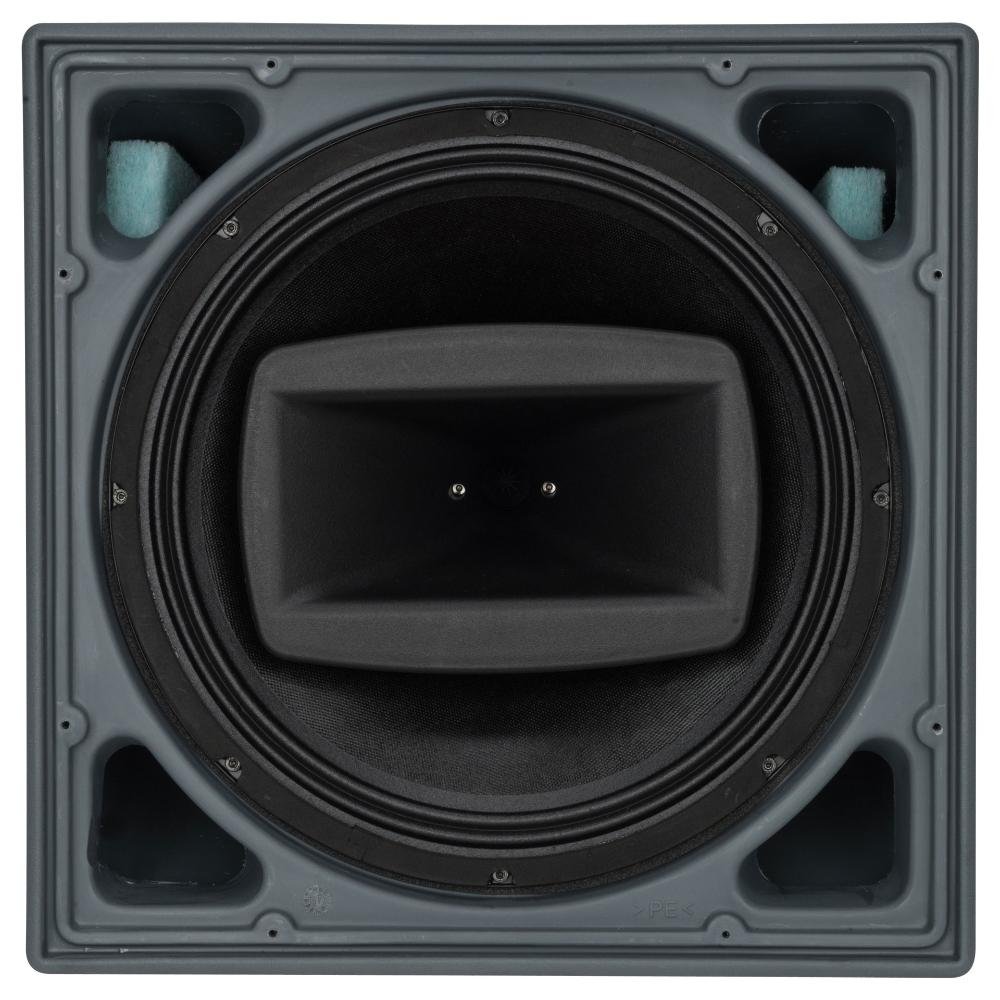

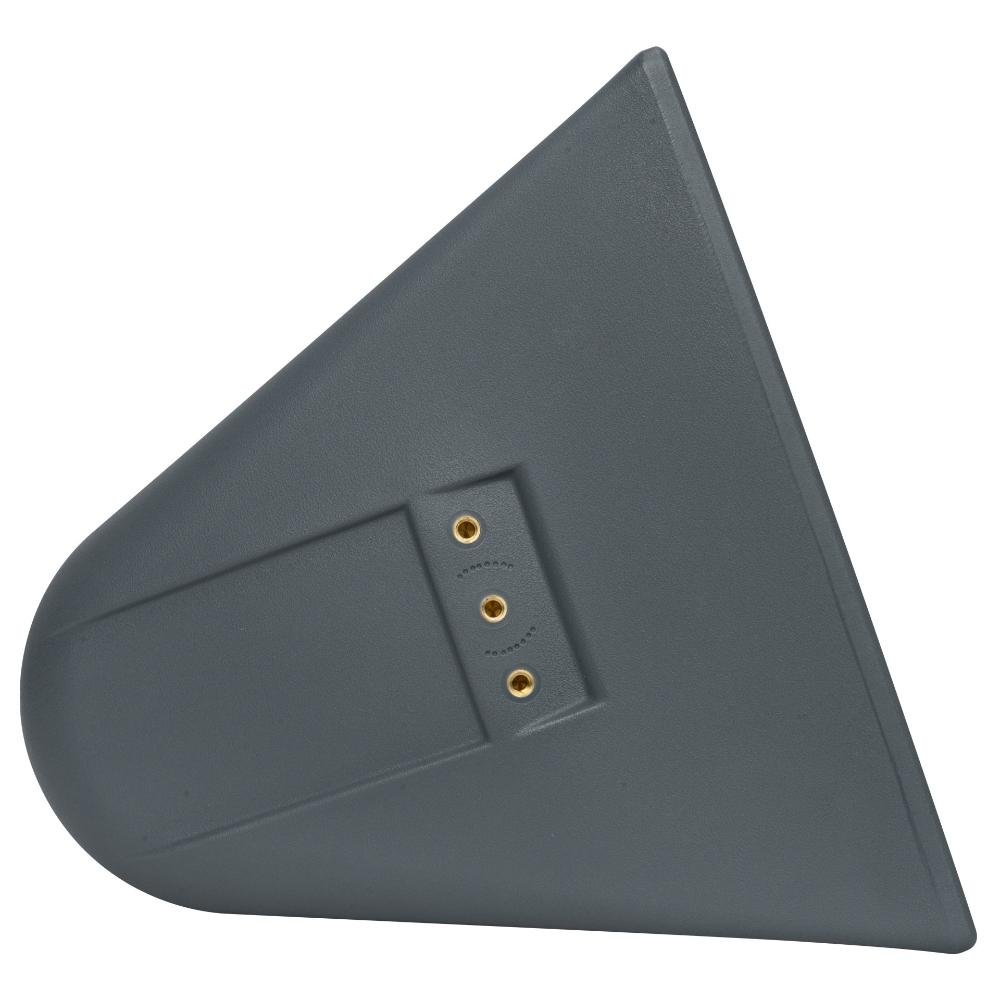

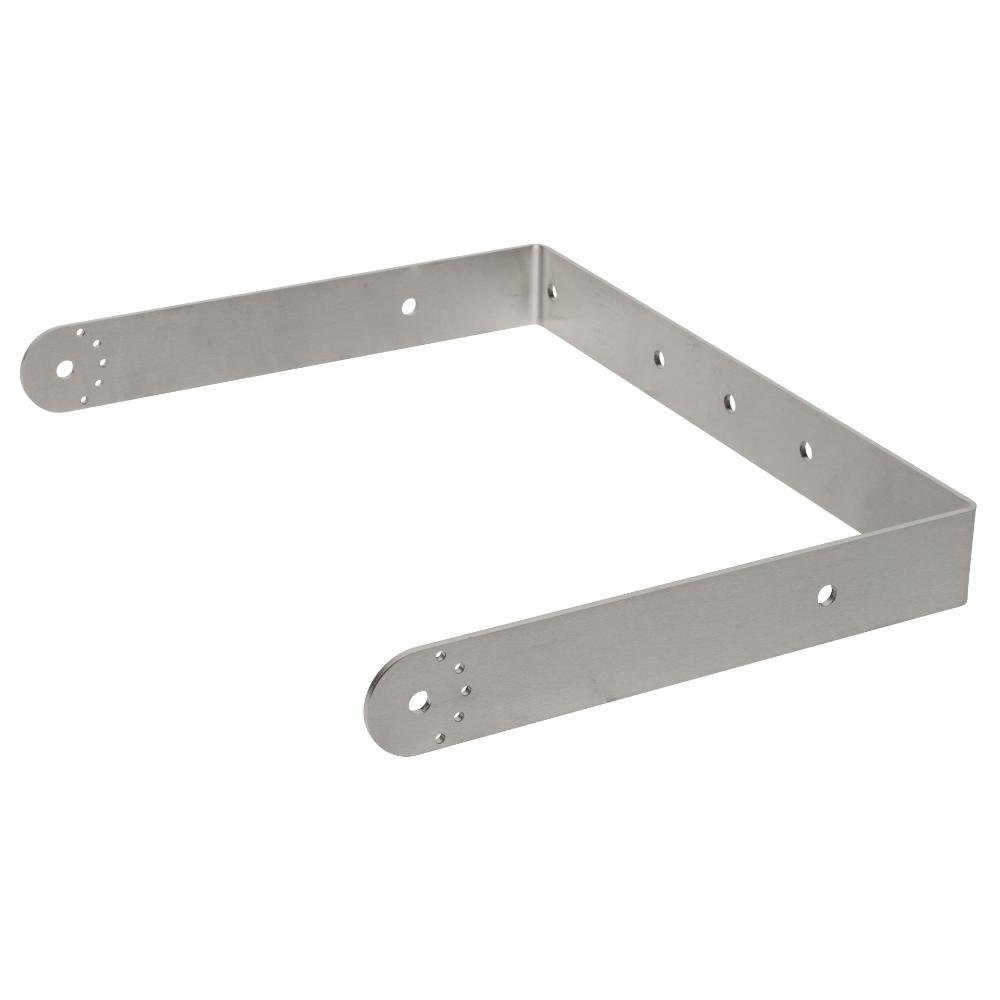

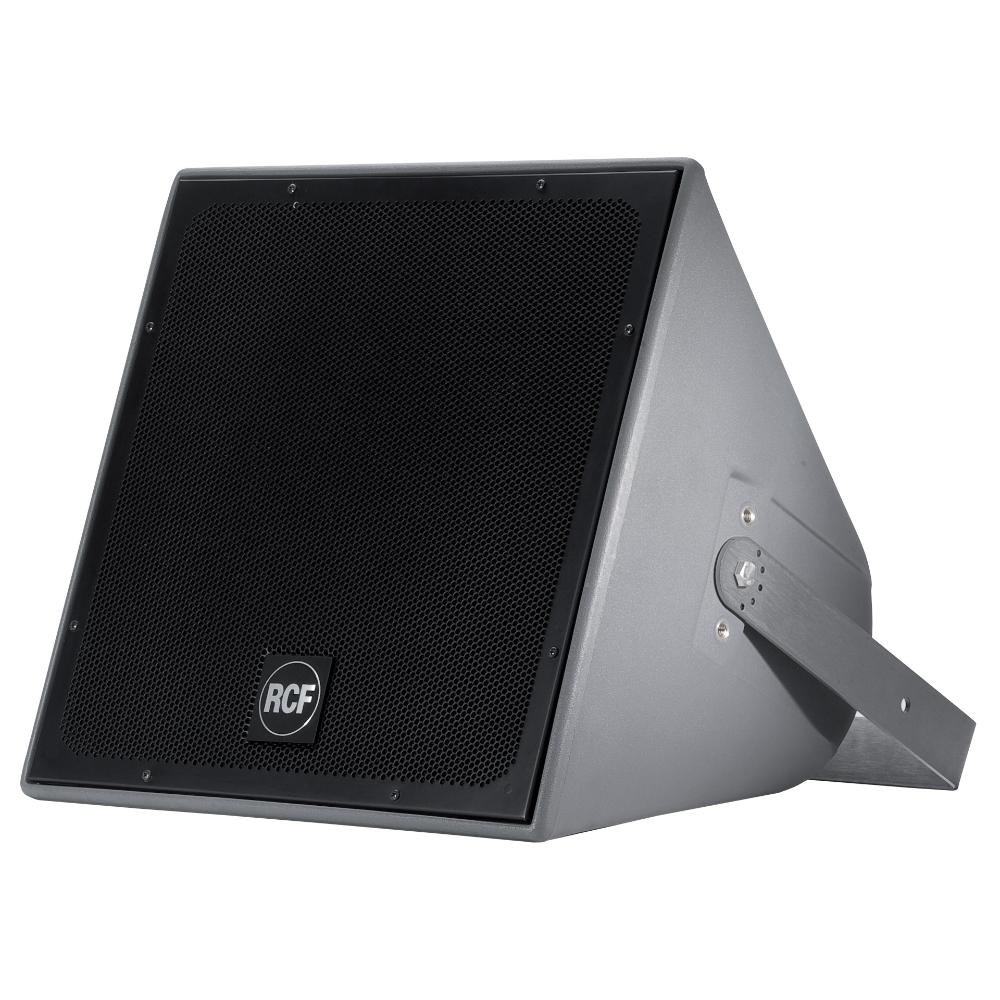

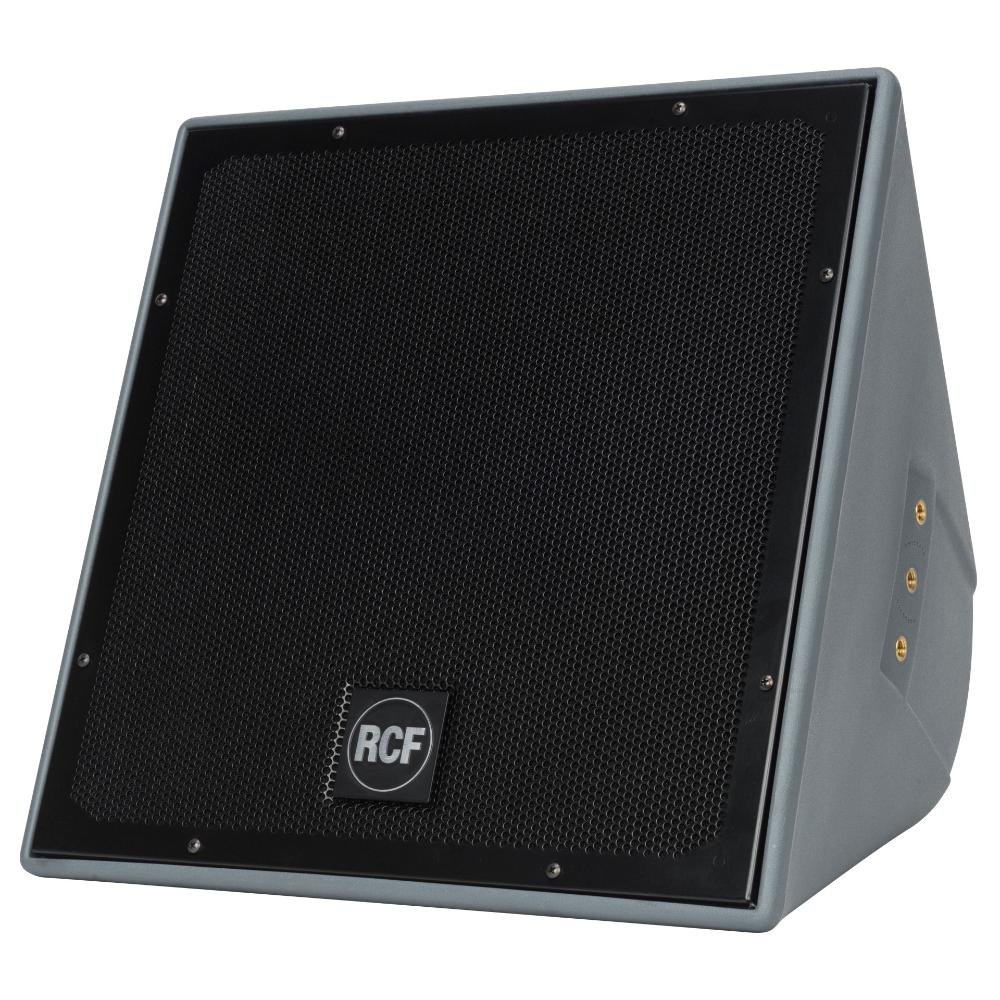

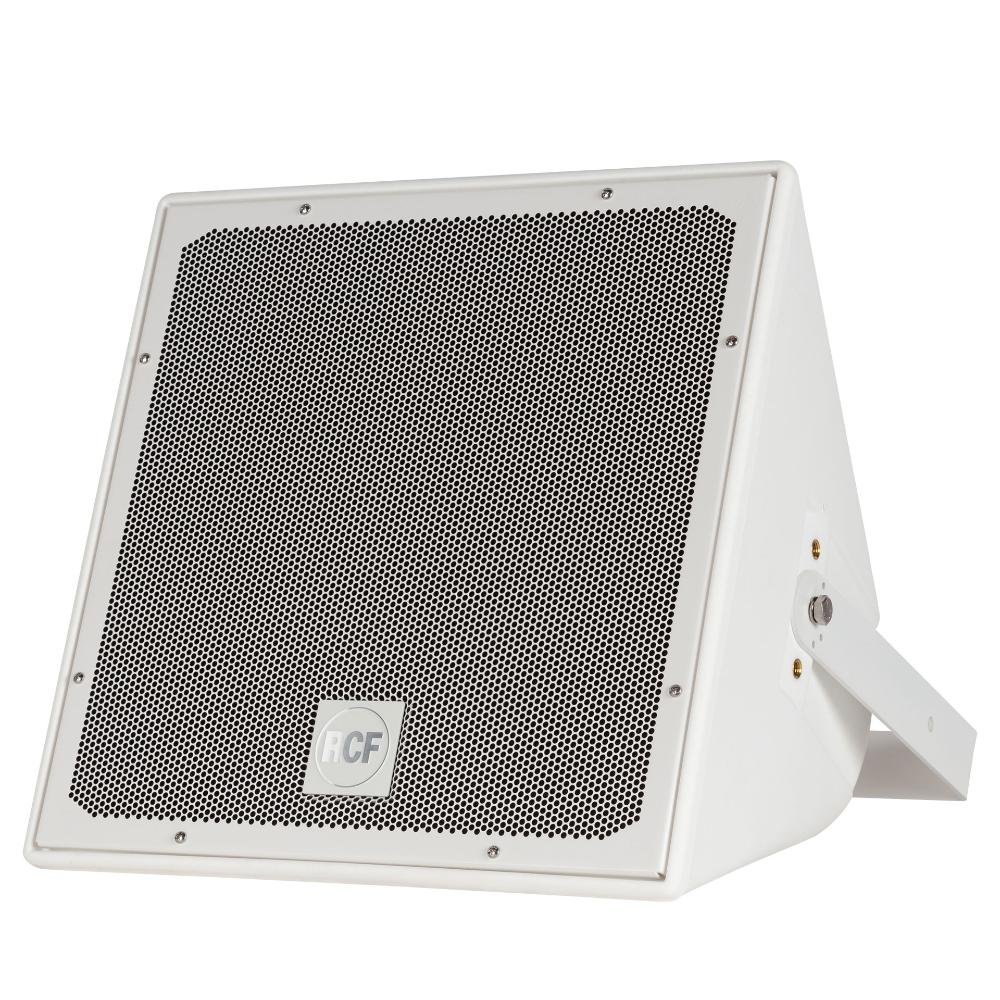

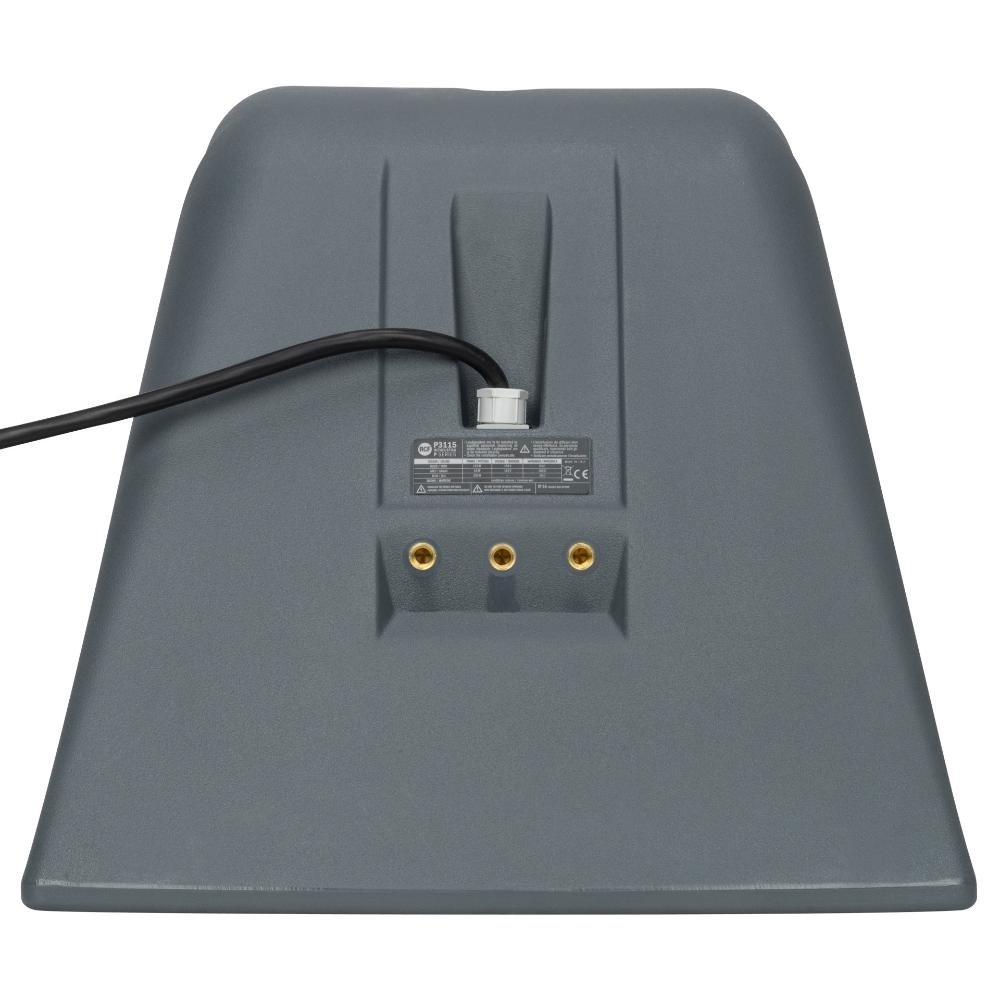

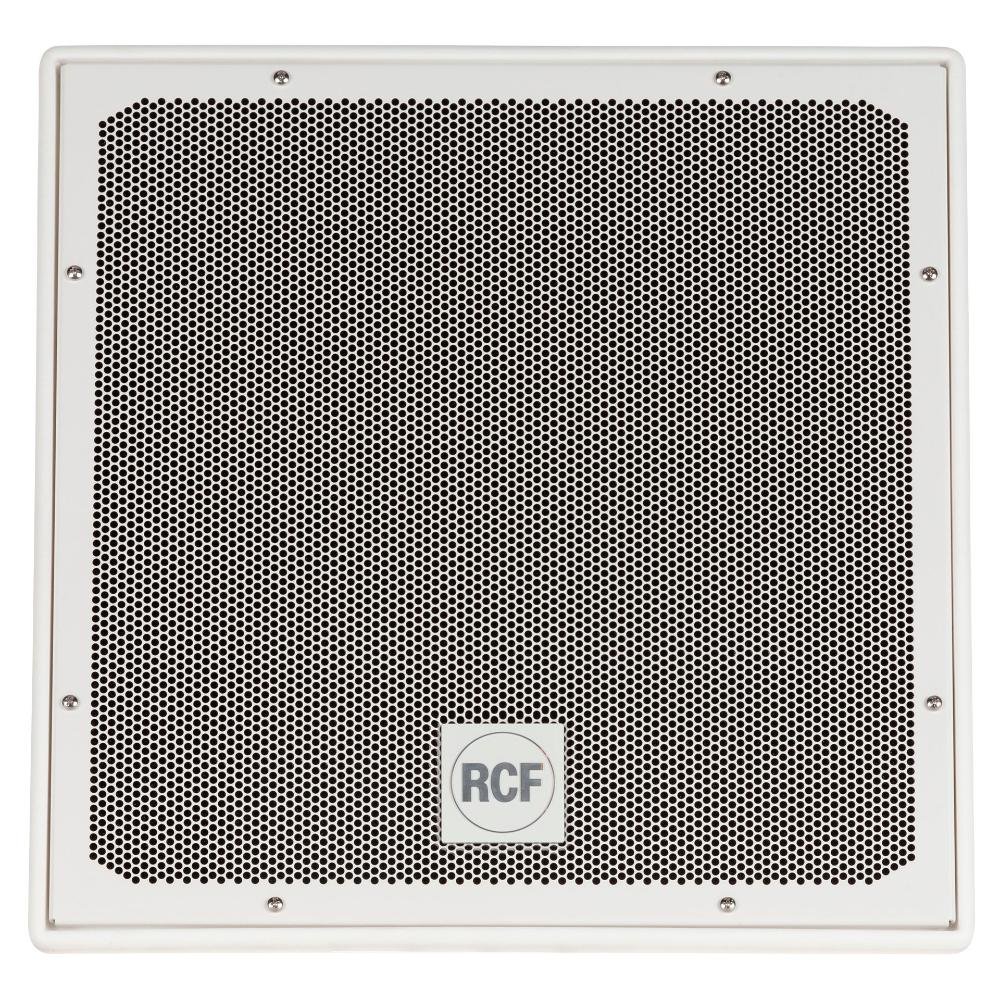

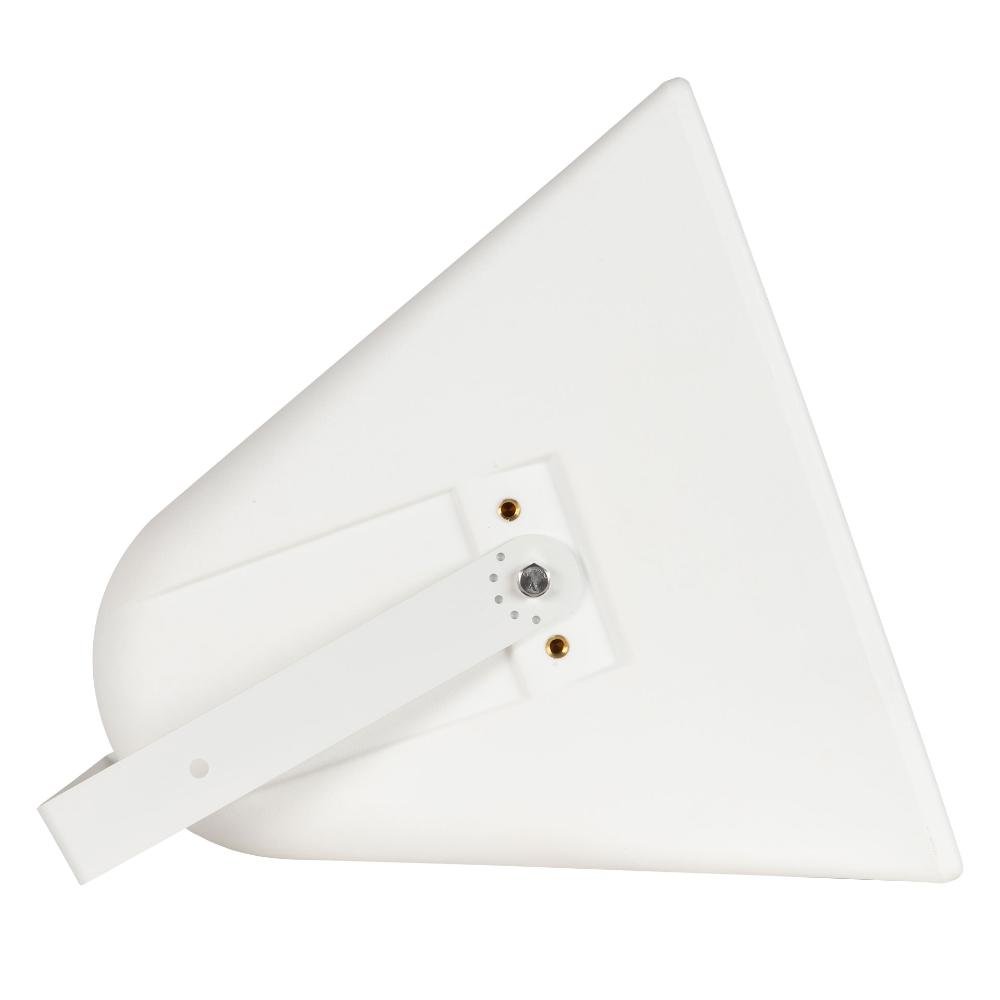

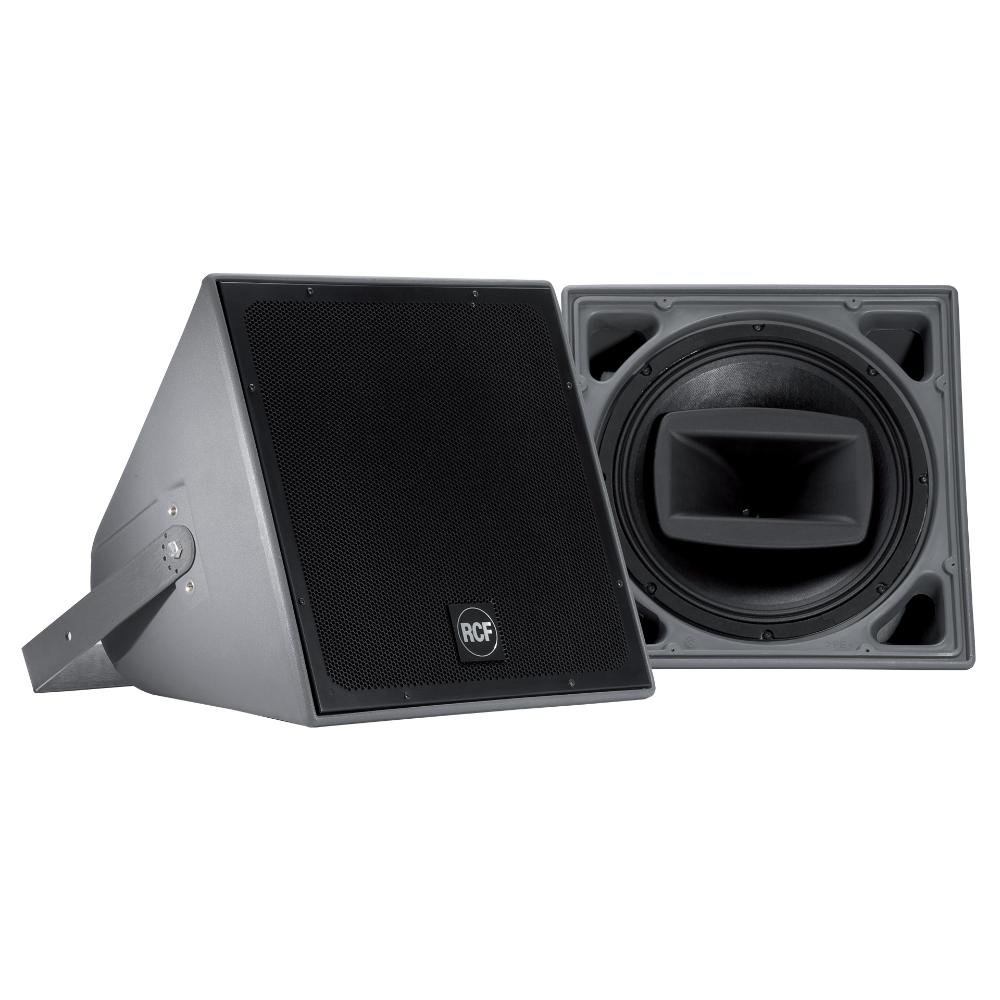

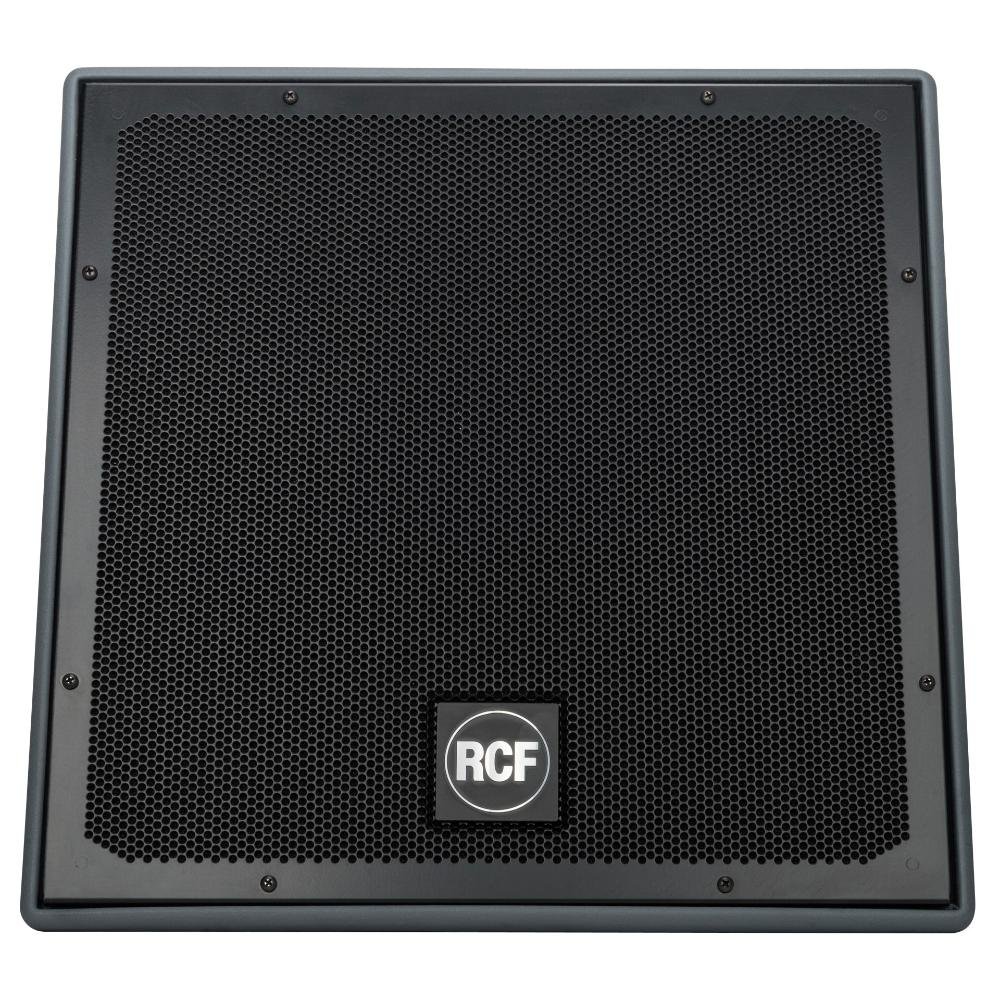

The P 3115T is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” woofer with a 3” voice coil. The high-frequency section combines a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 3115T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and a durable and corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
