IMPORTANT - PLEASE READ BEFORE RENTING

The Fantek XTF-FT6033 lifting towers are specialized professional rigging equipment. Proper transportation, handling, and experienced operation are required.

Transportation Requirements

• Towers must remain upright during transportation. They cannot be laid on their sides under Haye Productions' rental policy.
• A suitable enclosed trailer, high-roof cargo van, or box truck with adequate clearance is required.
• A properly rated loading ramp or liftgate is required for loading and unloading.
• Each tower weighs approximately 344 lbs and must be properly secured during transport.
• Customer pickup requires prior approval of transportation arrangements.

Operation & Cable Protection

• Only qualified, experienced operators may operate these towers.
• Follow all manufacturer instructions and rated load limitations.
• Protect all lifting cables, pulleys, winches, and locking mechanisms.
• Never allow cables to become loose, twisted, pinched, or improperly routed.
• Stop operation immediately if abnormal resistance, cable movement, or damage is observed.
• Deploy and level all outriggers before operation.
• Use approved lifting and rigging hardware appropriate for the load.
• Never lift personnel or permit anyone beneath suspended loads.

Equipment Damage & Responsibility

Improper handling, transportation, or operation can cause significant damage and costly repairs to these specialized lifting systems.

Customers are responsible for damage resulting from misuse, negligence, improper transportation, or failure to follow operating procedures, in accordance with the rental agreement.

Professional Delivery & Setup Available

Not experienced with professional lifting equipment? Contact Haye Productions before reserving. Professional delivery, setup, operation, and breakdown services are available by custom quote.

Customer pickup is subject to approval based on suitable transportation and qualified operating personnel.

Rental Information

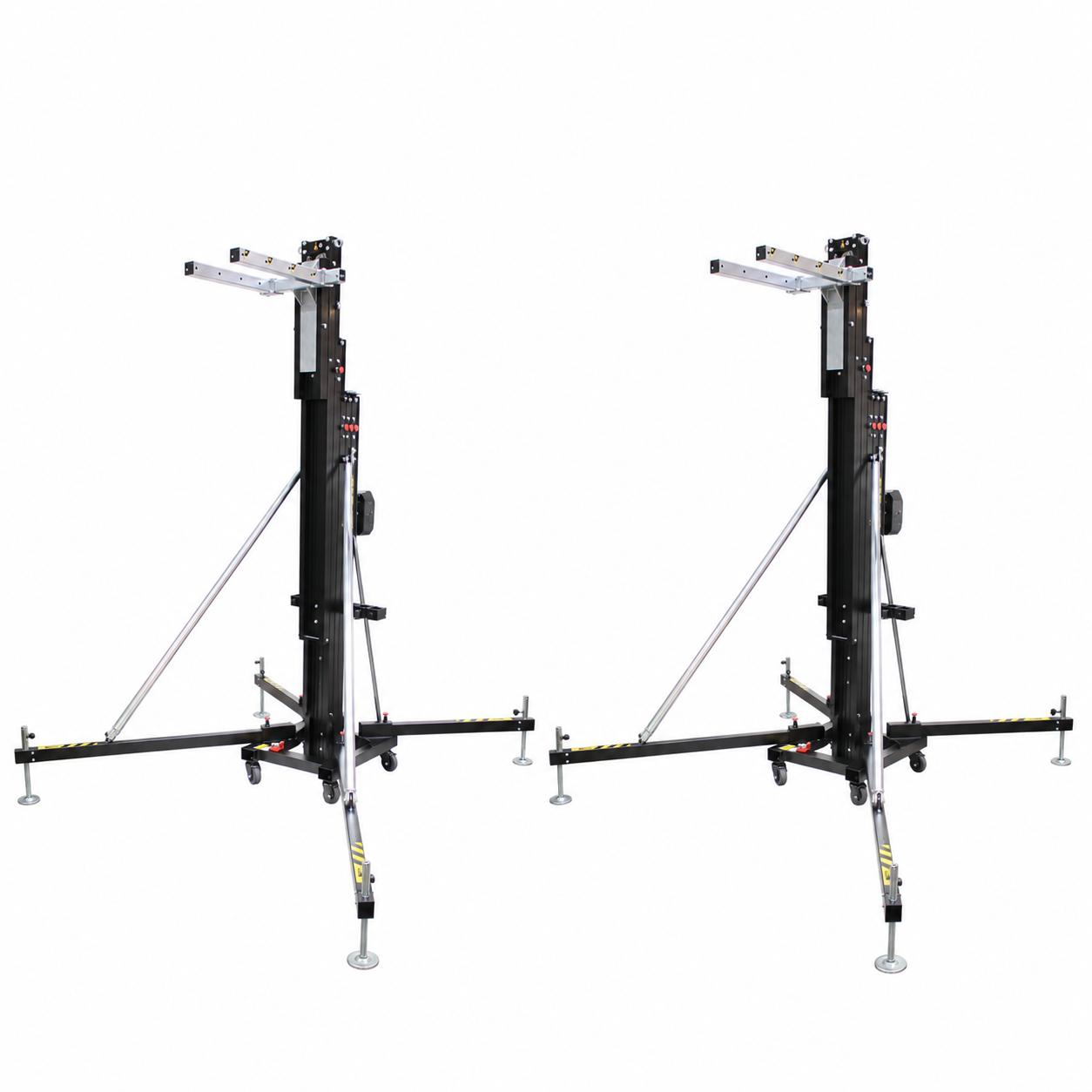

Rent a pair of Fantek XTF-FT6033 heavy-duty front-loading lifting towers for professional line-array speaker systems and compatible stage production applications.

• Complete rental package includes 2 lifting towers
• Maximum lifting height: 19.52 feet per tower
• Rated lifting capacity: 727.5 lbs per tower
• Designed for compatible line-array, truss, and LED applications
• Select your rental period above
• Customer pickup available by prior approval
• Professional delivery and setup available upon request

Need a complete production system? Haye Productions offers professional RCF line-array systems, subwoofers, rigging accessories, and full event production services.

Product Overview

The Fantek XTF-FT6033 is a professional compact front-loading lifting tower manufactured in Spain. Designed for touring and live event production, it provides a heavy-duty lifting solution for compatible line-array speakers, trussing, and LED screen configurations.

Each tower supports a rated lifting load of 727.5 pounds and reaches approximately 19.52 feet. Its telescoping aluminum mast system, reinforced steel base, manual winch, and adjustable outriggers provide professional lifting capabilities.

What's Included

• 2x Fantek XTF-FT6033 Front-Loading Lifting Towers
• Integrated manual winch and steel cable systems
• Integrated stabilizing outriggers and leveling feet
• Factory loading forks and standard tower hardware

Speakers, trussing, LED panels, and specialized rigging adapters are not included unless specifically identified in the rental agreement.

Key Features

• Professional front-loading tower design
• 727.5 lb maximum lifting capacity per tower
• 19.52 ft maximum lifting height
• Manual winch with steel lifting cable
• Five-section telescoping mast system
• Fantek Dynamic Overlap mast design
• Reinforced steel base with adjustable outriggers
• Integrated casters for ground-level positioning
• Designed for touring and professional production

Technical Specifications

Specifications are per tower. Winch rating is not the allowable lifting load. All loads and configurations must comply with manufacturer limits.

Perfect For

• Professional line-array speaker systems
• Concert and festival productions
• Live band and touring audio systems
• Stage and theatrical productions
• Compatible truss and lighting configurations
• LED wall support applications with approved rigging

Optional Equipment & Accessories

• Compatible line-array lifting adapters
• RCF line-array speaker systems
• Truss sections and rigging hardware
• LED wall equipment and compatible support hardware
• Professional delivery and setup
• Qualified rigging and operating personnel

Safety & Operating Requirements

• Operation by qualified personnel only
• Follow manufacturer instructions and load limits
• Inspect cables, winches, pulleys, and locks before use
• Fully deploy and level outriggers before lifting
• Use compatible and properly secured rigging hardware
• Keep personnel clear of elevated loads
• Never lift people or operate damaged equipment
• Observe manufacturer wind and weather restrictions

Important: Individual tower capacities cannot simply be added together to establish the capacity of a complete lifting or truss system. Qualified personnel must evaluate the configuration.

Pickup, Delivery & Setup

• Customer pickup by prior approval in Phillipsburg, NJ
• Upright transportation required
• Suitable ramp or liftgate required
• Delivery available throughout NJ and Eastern PA
• Professional setup and breakdown available by quote

Rental Terms & Reservations

Rental availability is subject to confirmation. Customer pickup requires appropriate transportation and experienced operators.

Equipment must be returned complete and in proper operating condition, excluding normal wear. Responsibility for loss, misuse, or damage is governed by the Haye Productions rental agreement.

Contact Haye Productions for rental reservations, delivery arrangements, rigging requirements, and professional event production services.
