Allen & Heath Qu-7 / Qu-7D 38-Input 96kHz Digital Mixing Console
Allen & Heath Qu-7 / Qu-7D 38-Input 96kHz Digital Mixing Console

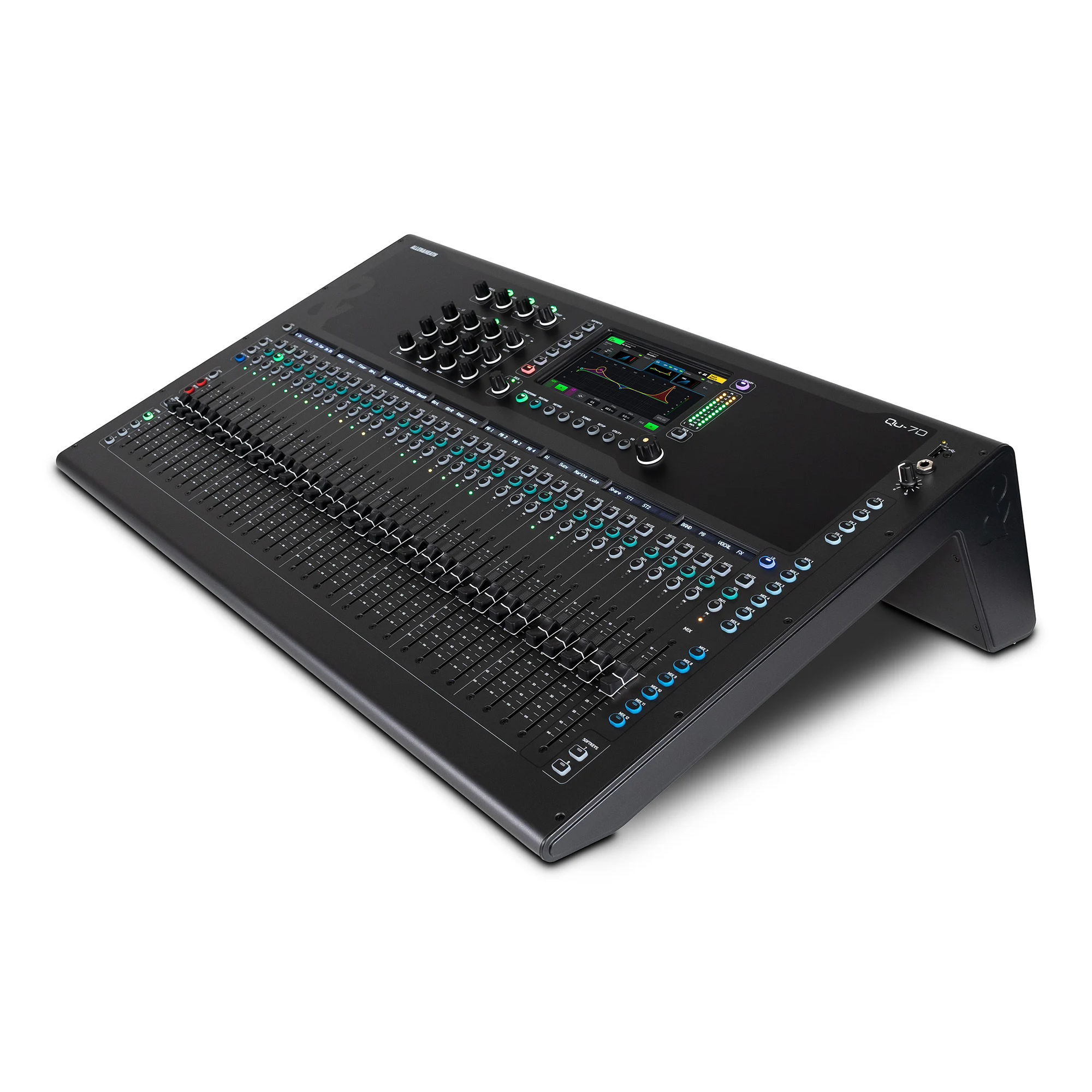

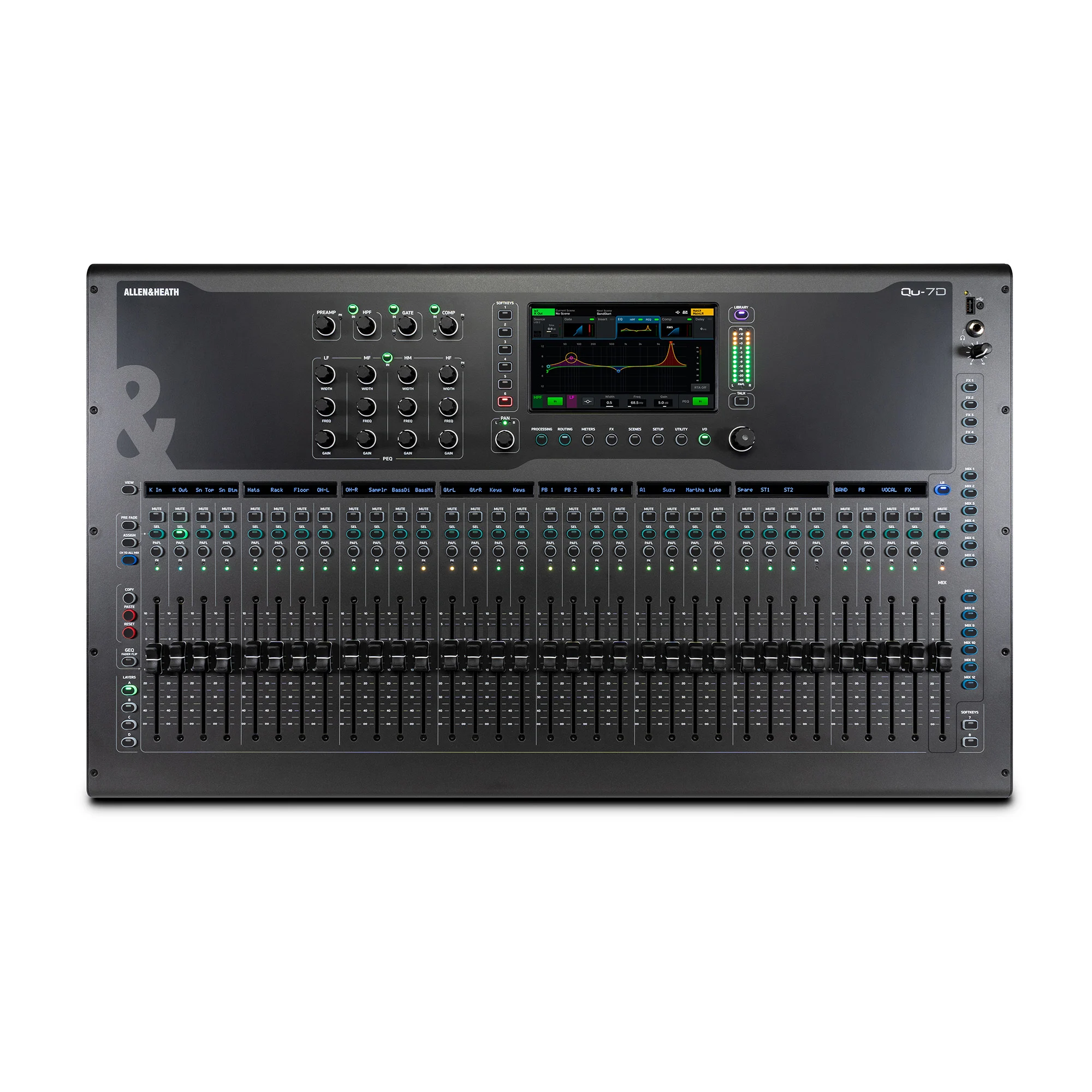

The Allen & Heath Qu-7 / Qu-7D is a professional 38-input digital mixing console featuring a 96kHz XCVI processing engine, 33 motorized faders, and a 7-inch touchscreen. Designed for live sound, touring, houses of worship, corporate AV, and permanent installations, the Qu-7 series combines extensive local connectivity with intuitive mixing control and powerful audio processing.
Key Specifications
38 Inputs to Mix – 32 Mono/Linkable + 3 Stereo
96kHz XCVI Processing with DEEP Processing Support
33 × 100mm Motorized Faders with 4 Customizable Layers
32 Local Mic/Line Inputs and 20 XLR Outputs
7" Capacitive Touchscreen with Assignable SoftKeys
128×128 SLink Expansion and 32×32 USB-C Audio Interface
Integrated 16×16 Dante Connectivity on Qu-7D Model
Select your model: Qu-7 (Standard) or Qu-7D (Dante Enabled).
Shipping & Pickup
- Nationwide shipping available.
- Professionally packed for safe transport.
- Local pickup available in Phillipsburg, NJ.
Product Overview
The Allen & Heath Qu-7 and Qu-7D are next-generation professional digital mixing consoles combining a 96kHz XCVI processing engine with extensive local connectivity and hands-on control. Both models provide 38 inputs to mix, 12 mixes, 4 matrix outputs, 6 FX engines, and DEEP Processing support for live sound, touring, houses of worship, corporate AV, and permanent installations.
With 32 local XLR/TRS combo mic/line inputs, 20 XLR outputs, 33 motorized faders, four customizable layers, and a 7-inch touchscreen, the Qu-7 series offers an intuitive workflow and flexible signal routing. Additional features include Gain Assistant, Feedback Assistant, Automatic Mic Mixer, 128x128 SLink expansion, 32x32 USB-C audio interfacing, and SD card multitrack recording.

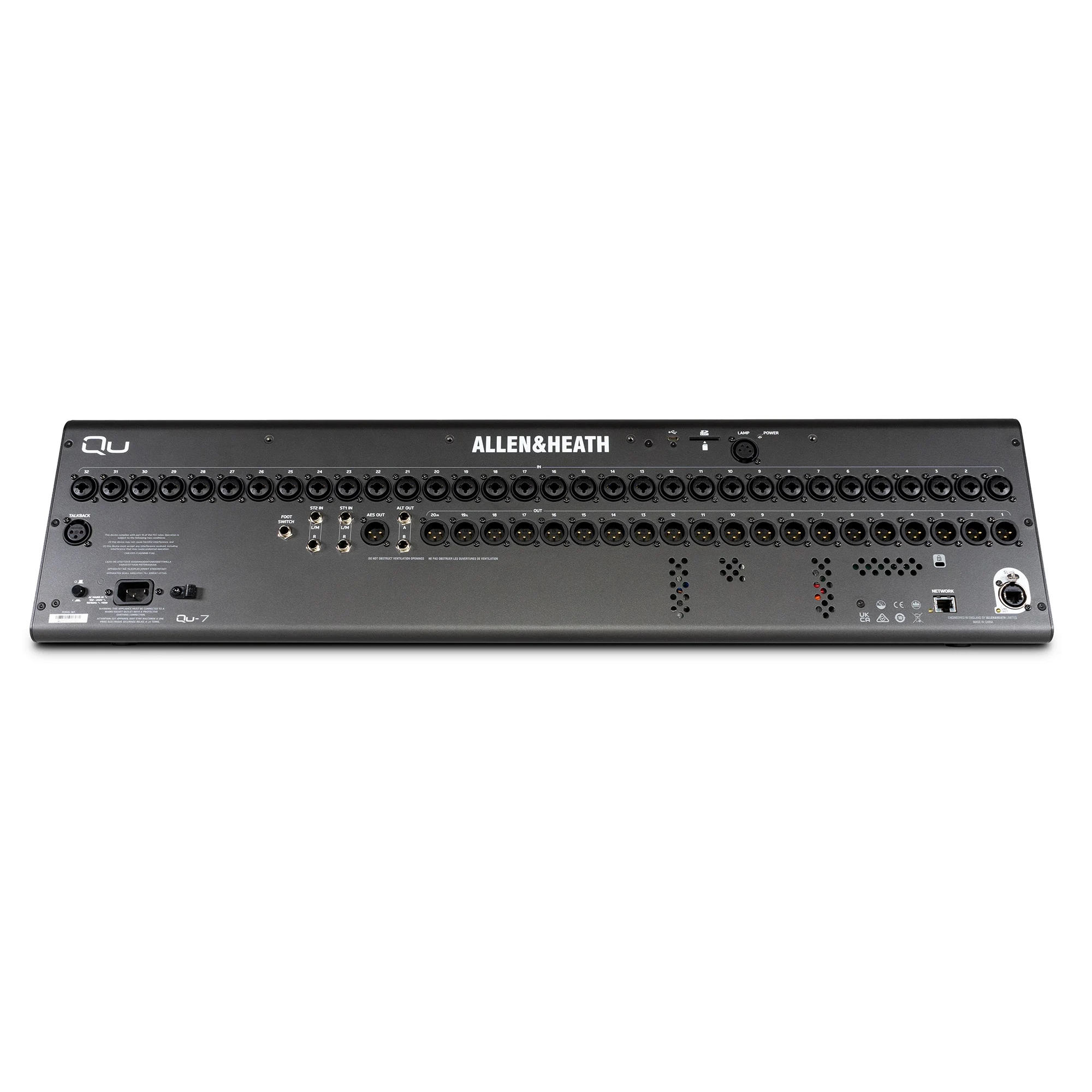

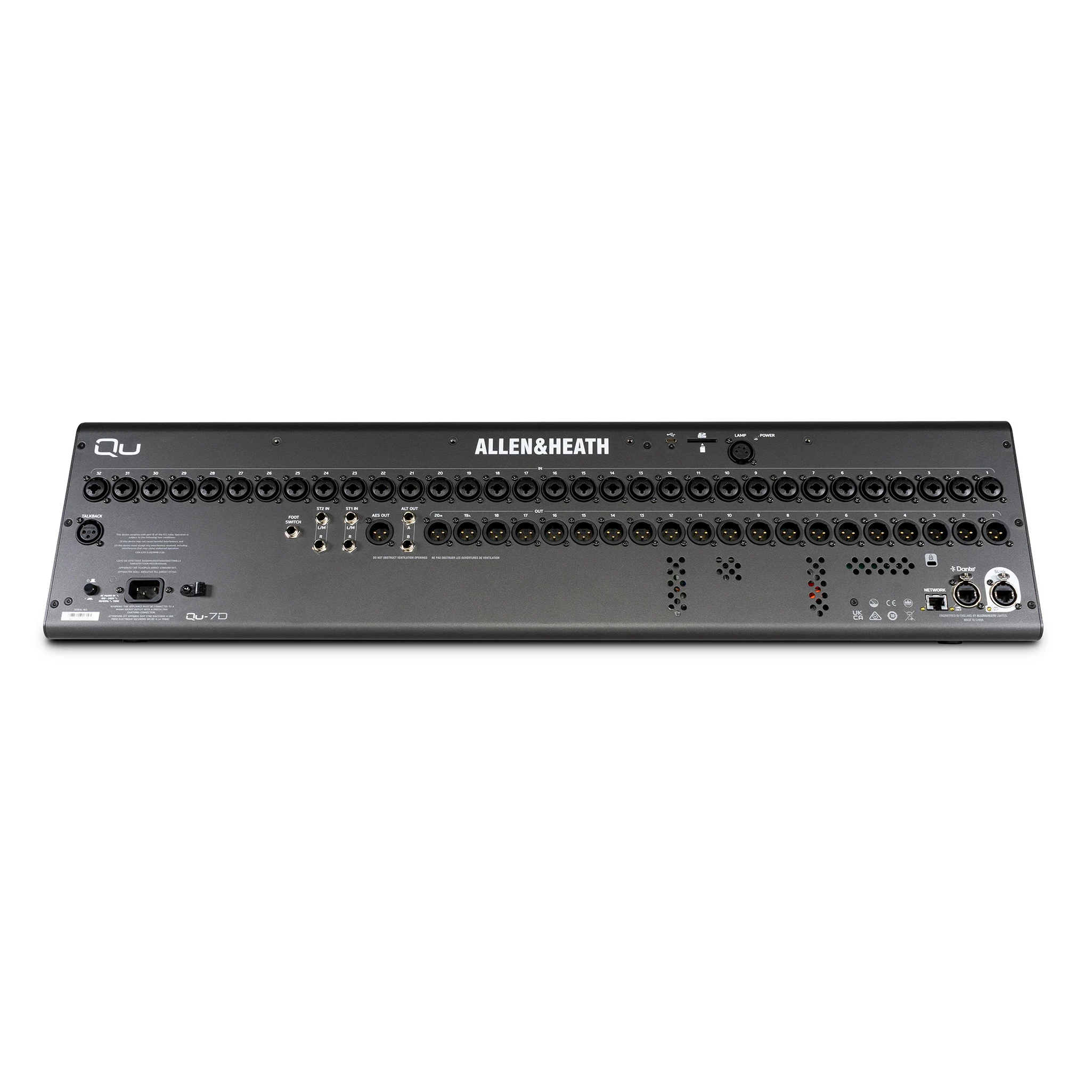

Model Options: The Qu-7 provides the standard digital mixing platform with SLink expansion. The Qu-7D includes all standard Qu-7 features plus an integrated 16x16 Dante interface operating at 48kHz or 96kHz through a dedicated locking etherCON network port.
Technical Specifications
| Models | Qu-7 / Qu-7D |
| Mixer Type | Professional Digital Mixing Console |
| Processing Engine | 96kHz XCVI Core |
| Input Channels | 38 (32 Mono/Linkable + 3 Stereo) |
| Local Mic/Line Inputs | 32 XLR/TRS Combo Sockets |
| Stereo Line Inputs | 2 Stereo Inputs (4 TRS Sockets) |
| Local XLR Outputs | 20 XLR Outputs |
| Additional Outputs | 2 TRS Outputs + Stereo AES3 Digital Output |
| Mix Buses | 12 Mixes + Stereo Main LR |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| Motorized Faders | 33 x 100mm, 4 Customizable Layers |
| Display | 7" Capacitive Touchscreen |
| Assignable Controls | 8 SoftKeys |
| Effects Processing | 6 Multi-FX Engines with Stereo Returns |
| Processing Features | DEEP Processing Ready, Gain Assistant, Feedback Assistant, Automatic Mic Mixer |
| SLink Expansion | 128x128 Intelligent SLink Port |
| Dante Connectivity | Qu-7D Only: Integrated 16x16 Dante at 48/96kHz |
| USB Audio Interface | 32x32 USB-C at 48/96kHz |
| SD Card Recording | 32 Channels at 48kHz / 16 Channels at 96kHz |
| Remote Control | Qu-MixPad and Qu4You Apps |
