Allen & Heath Qu-5 / Qu-5D 38-Input 96kHz Digital Mixing Console
Allen & Heath Qu-5 / Qu-5D 38-Input 96kHz Digital Mixing Console

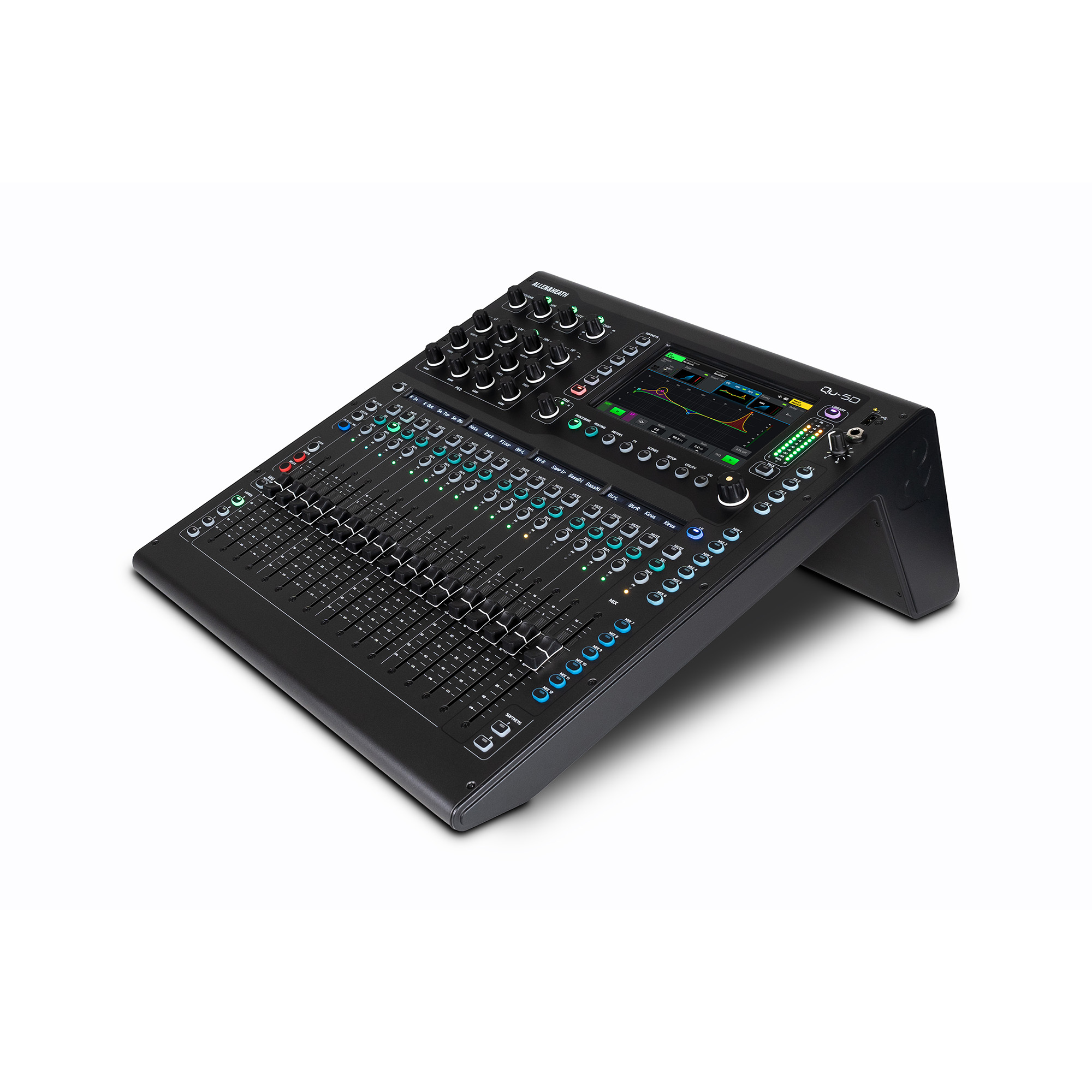

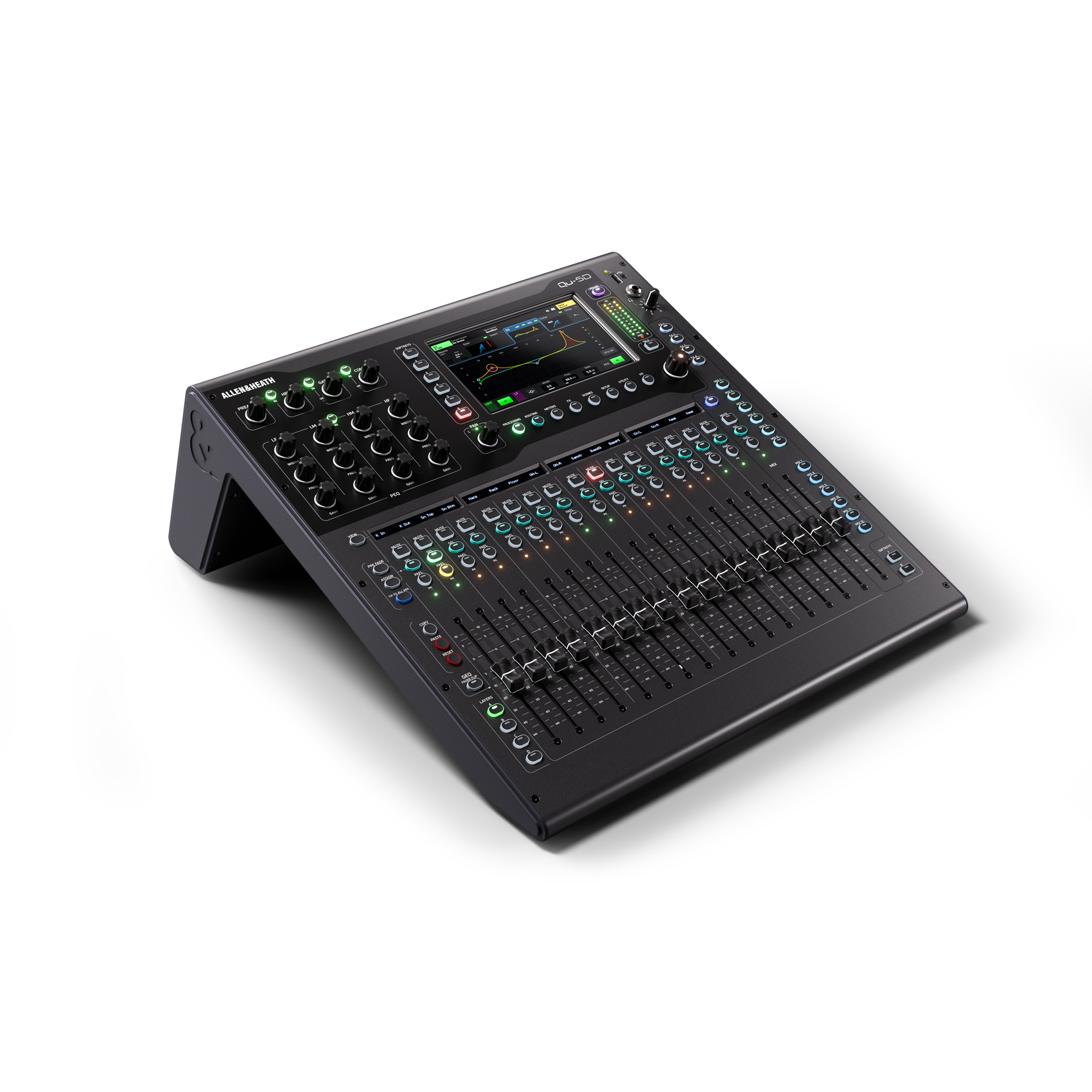

The Allen & Heath Qu-5 / Qu-5D is a next-generation professional digital mixing console featuring a powerful 96kHz XCVI processing core, 38 input channels, 17 motorized faders, and a 7-inch touchscreen. Designed for live sound, touring, houses of worship, corporate AV, and permanent installations, the Qu-5 series delivers exceptional audio quality, flexible routing, and intuitive hands-on control.
Key Specifications
38 Inputs to Mix – 32 Mono/Linkable + 3 Stereo
96kHz XCVI Processing with DEEP Processing Support
17 × 100mm Motorized Faders with 4 Customizable Layers
16 Combo XLR/TRS Mic/Line Inputs and 12 XLR Outputs
7" Capacitive Touchscreen and 8 Assignable SoftKeys
128×128 SLink Expansion and 32×32 USB-C Audio Interface
Optional Integrated 16×16 Dante Connectivity (Qu-5D)
Select your model: Qu-5 (Standard) or Qu-5D (Dante Enabled).
Shipping & Pickup
- Nationwide shipping available.
- Professionally packed for safe transport.
- Local pickup available in Phillipsburg, NJ.
Product Overview

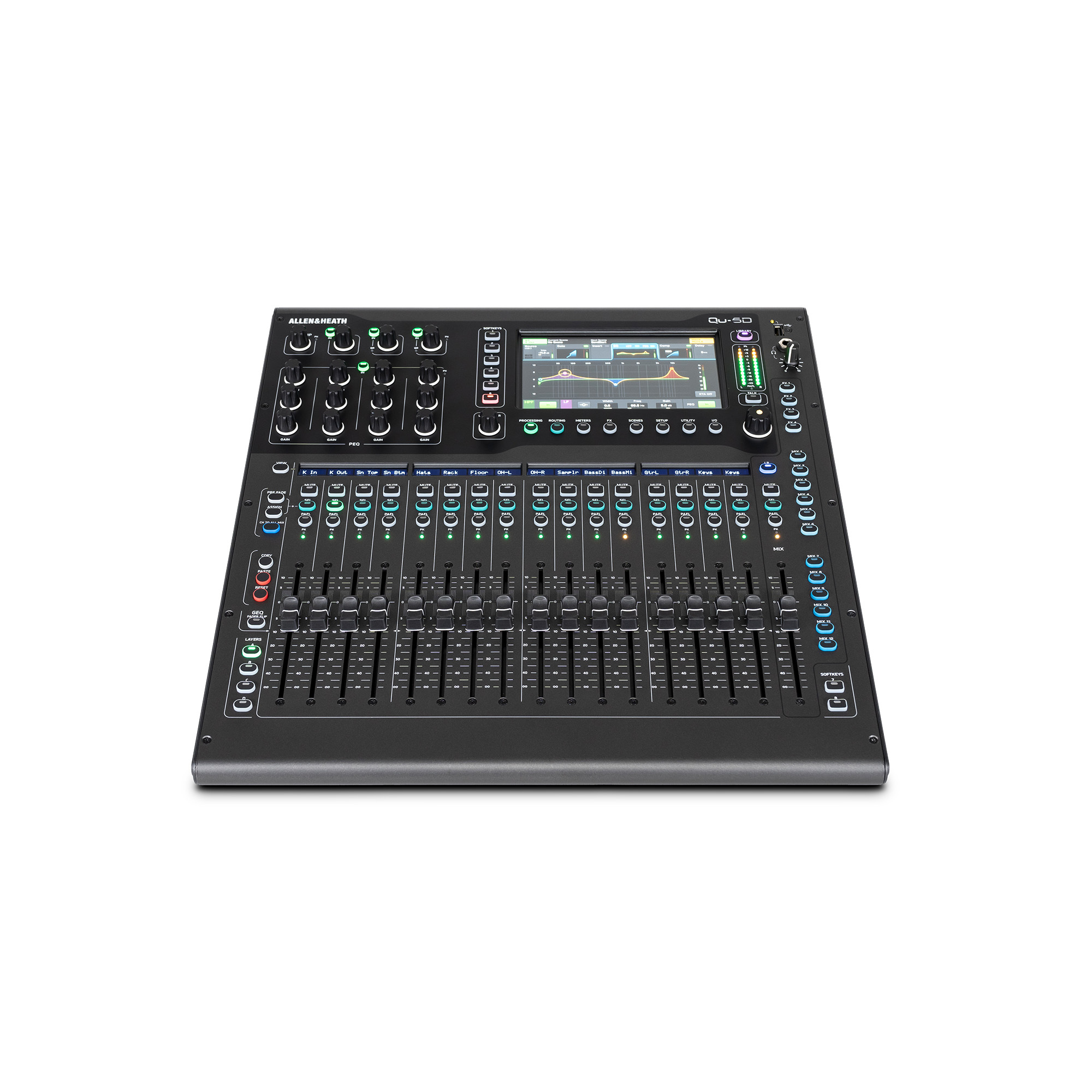

The Allen & Heath Qu-5 and Qu-5D bring the next generation of Qu digital mixing technology to a compact, professional console. Powered by the 96kHz XCVI core, both models offer 38 inputs to mix, 12 mixes, 4 matrix outputs, 6 FX engines, and DEEP Processing support. A redesigned interface with 17 motorized faders, 4 customizable layers, and a 7-inch touchscreen provides fast, intuitive control.

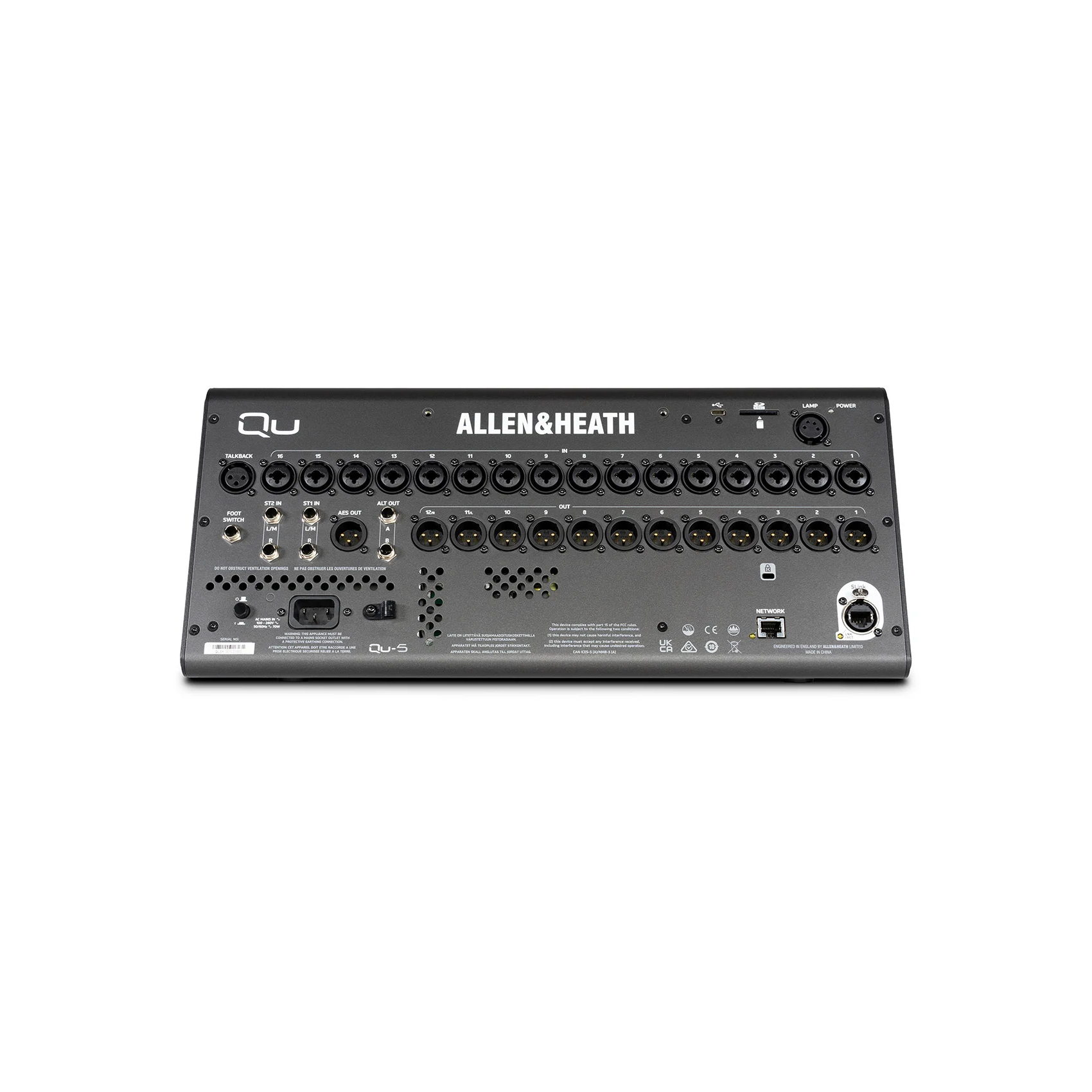

Both consoles feature 16 combo mic/line inputs, 12 XLR outputs, a 128x128 SLink port for Allen & Heath Everything I/O expansion, 32x32 USB-C audio interfacing, and SD card multitrack recording. Gain Assistant and Feedback Assistant simplify setup for live performances, corporate productions, houses of worship, and installed sound systems.

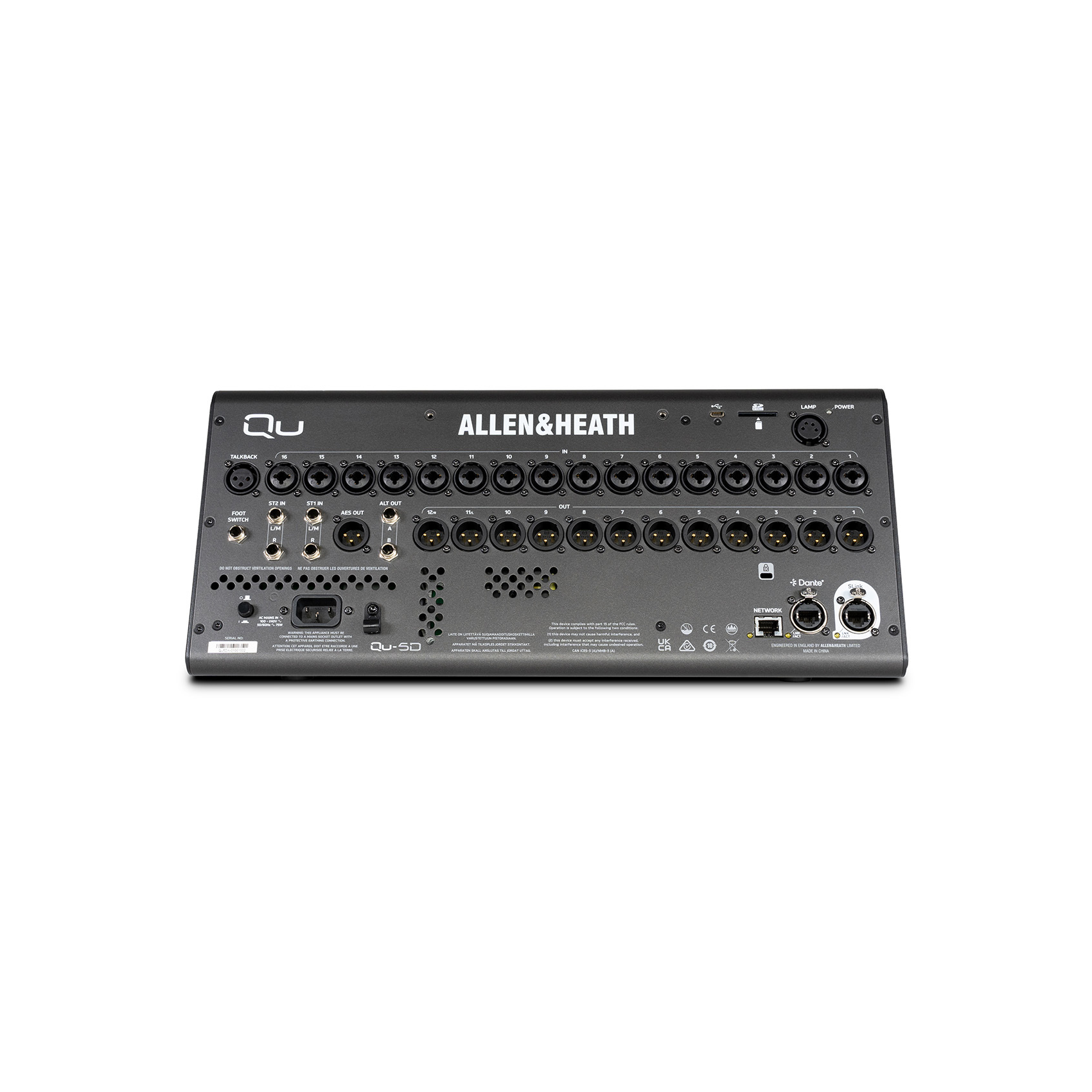

Model Options: The Qu-5 provides the standard digital mixing platform with SLink expansion. The Qu-5D includes the same features plus an integrated 16x16 Dante interface operating at 48kHz or 96kHz, with a dedicated locking etherCON network connection.
Technical Specifications
| Models | Qu-5 / Qu-5D |
| Mixer Type | Professional Digital Mixing Console |
| Processing Engine | 96kHz XCVI Core |
| Input Channels | 38 (32 Mono/Linkable + 3 Stereo) |
| Local Mic/Line Inputs | 16 XLR/TRS Combo Sockets |
| Stereo Line Inputs | 2 Stereo Inputs (4 TRS Sockets) |
| Local XLR Outputs | 12 XLR Outputs |
| Mix Buses | 12 Mixes + Stereo Main LR |
| Matrix Outputs | 4 Mono/Linkable Matrix Mixes |
| Motorized Faders | 17 × 100mm, 4 Customizable Layers |
| Display | 7" Capacitive Touchscreen |
| Effects Processing | 6 Stereo FX Engines with Dedicated Returns |
| Processing Features | DEEP Processing Ready, Gain Assistant, Feedback Assistant, Automatic Mic Mixer |
| SLink Expansion | 128x128 Intelligent SLink Port |
| Dante Connectivity | Qu-5D Only: Integrated 16x16 Dante at 48/96kHz |
| USB Audio Interface | 32x32 USB-C at 48/96kHz |
| SD Card Recording | 32 Channels at 48kHz / 16 Channels at 96kHz |
| Rack Mounting | 19" Rack Mountable with Optional Rack Kit |
