HORN LOADED TWO-WAY ARRAY 60° X 22.5°

• 1500 W system power handling (RMS)

• 141 dB max SPL

• 60° x 22.5° constant directivity, horn-loaded

• IP 55 protection code

• 60 Hz ÷ 20000 Hz frequency range

• 2 x 12" high power woofers (3.5" v.c.)

• 1 x 4.0" v.c. compression driver, titanium dome

• Baltic Birch Plywood enclosure with internal structural metal bracings

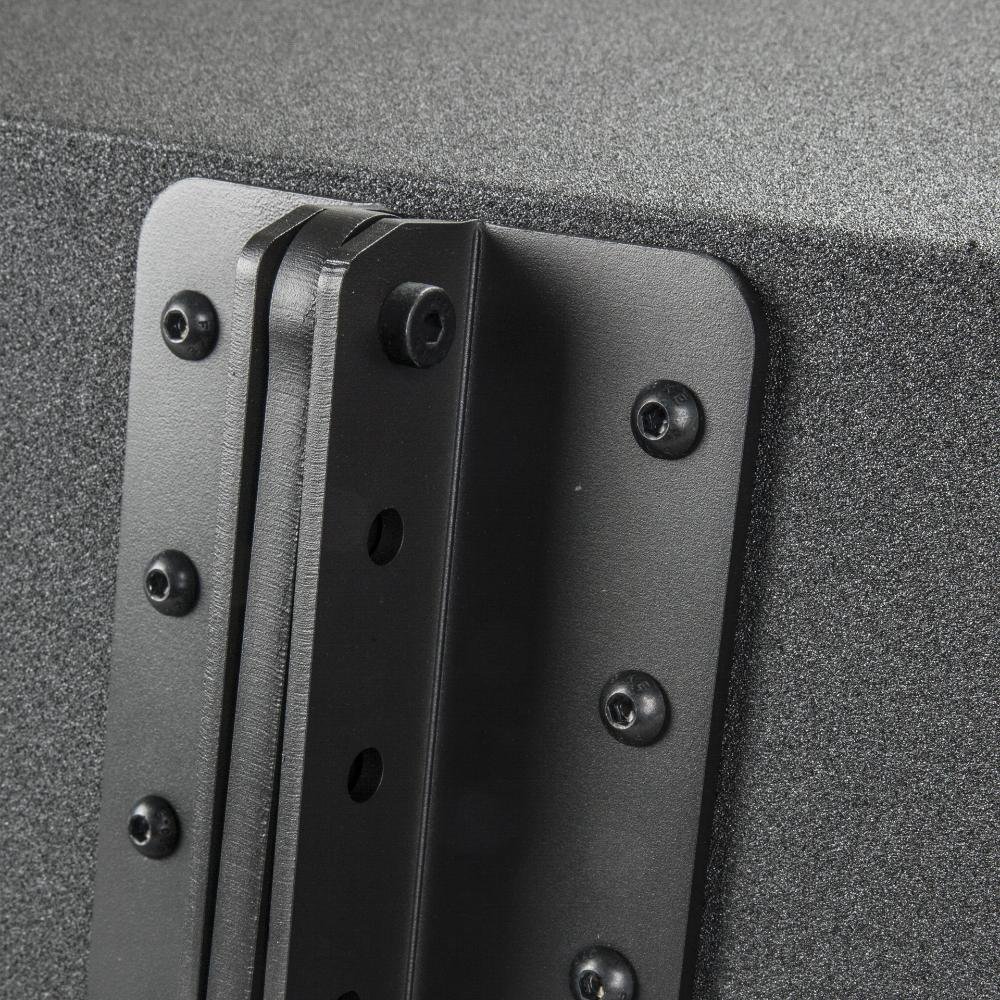

• Safe and solid variable array mechanics

• Amphenol IP 67 in/out connectors

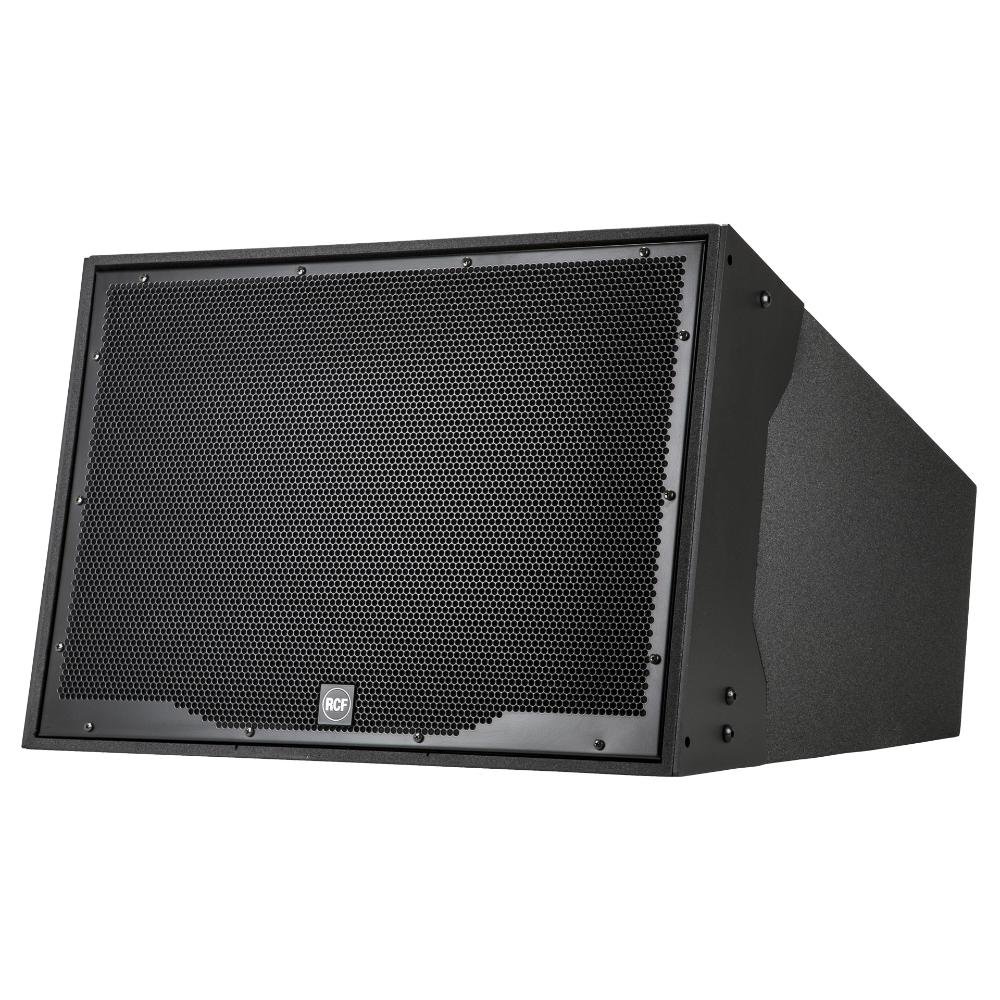

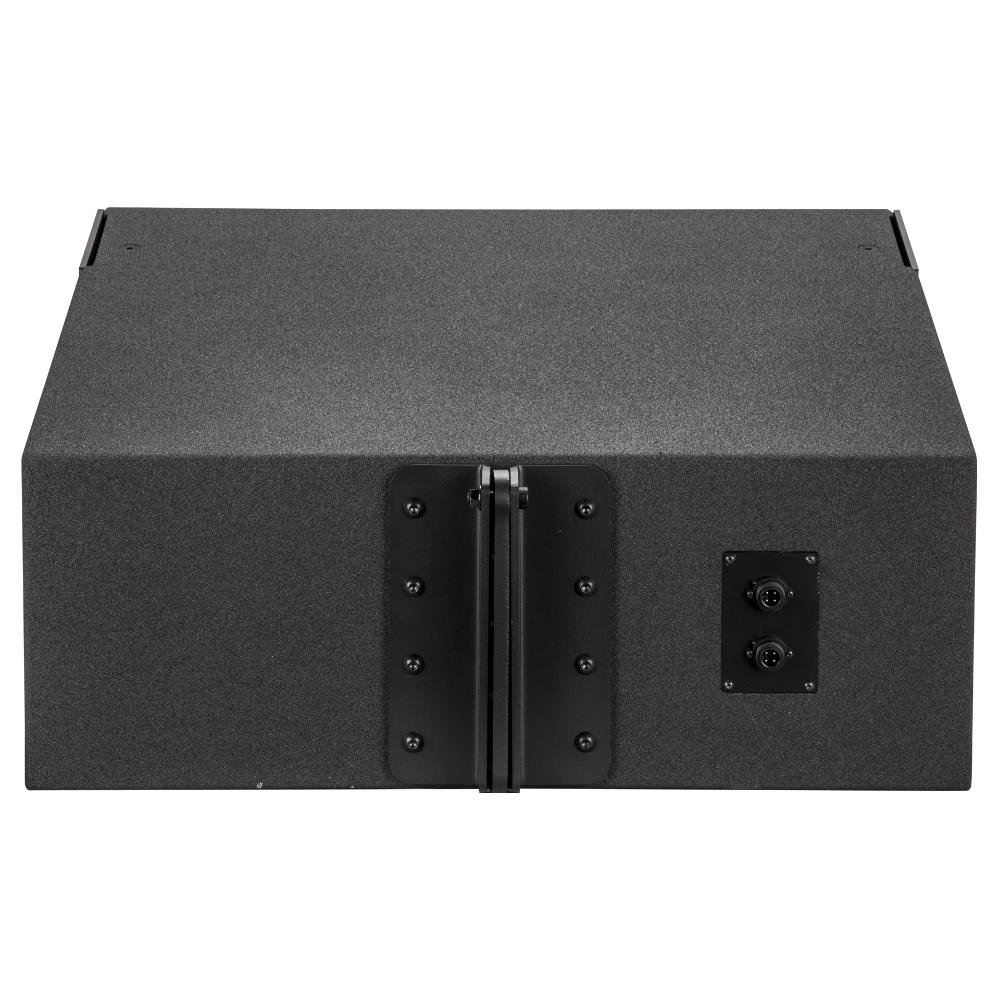

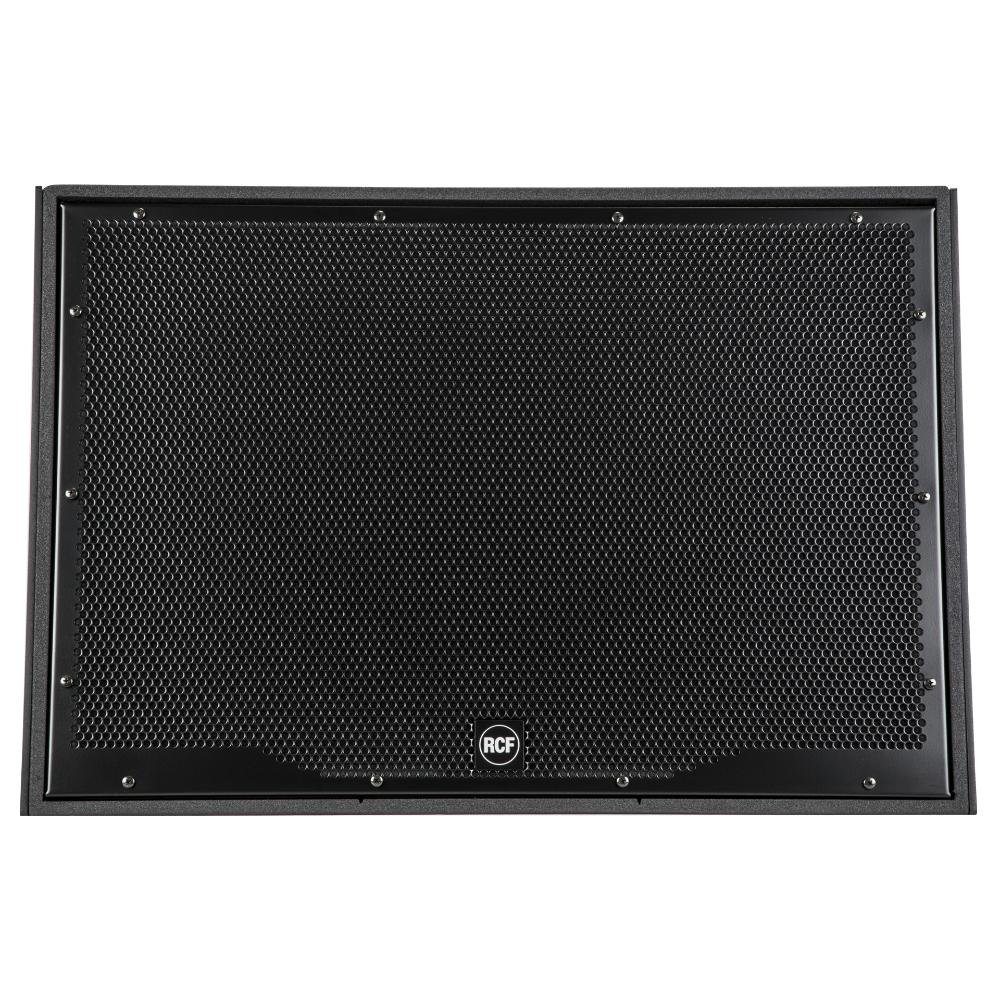

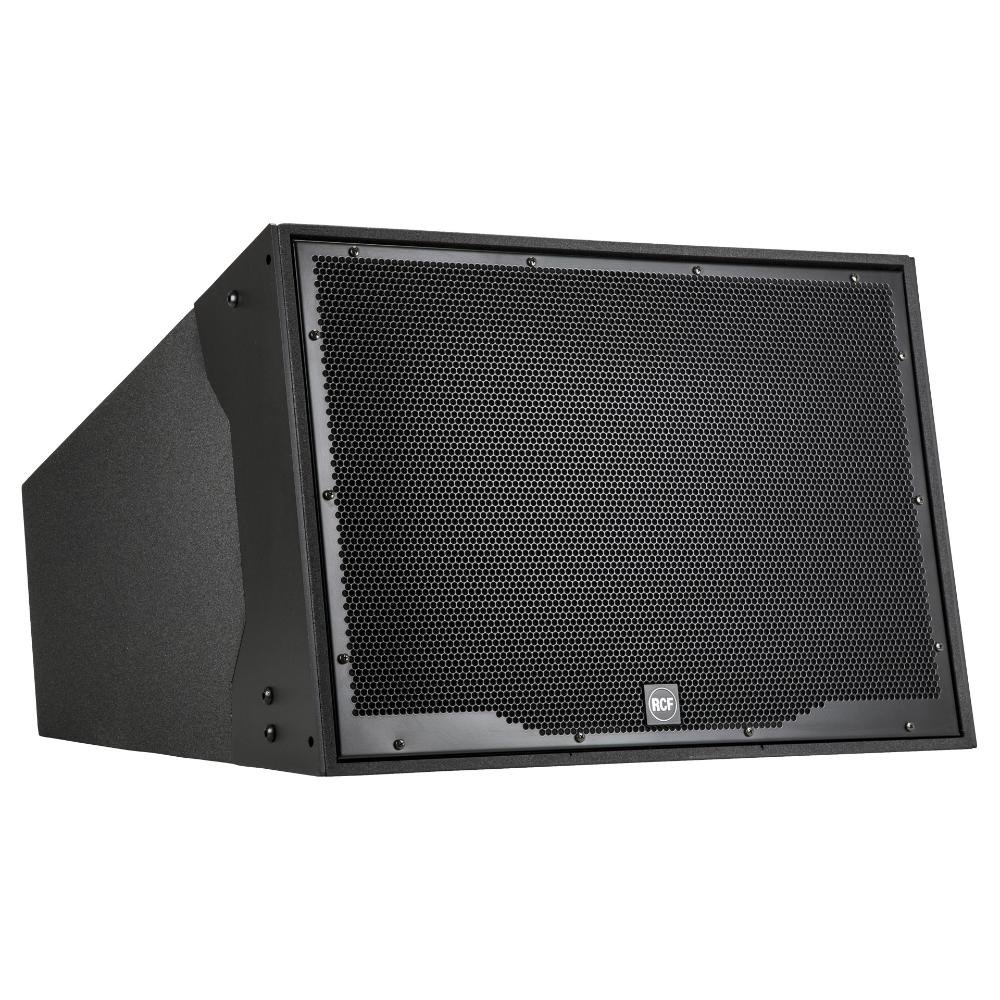

HL 2260 is a horn loaded two-way bi-amped array system that incorporates 2 x 12” woofer and a titanium dome 4.0” voice coil titanium compression driver for mid distance and long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The system has a 60° x 22.5° constant directivity and is ideally used in point source configuration for mid distance applications or can be clustered with narrower angles for long throw applications. The loudspeaker enclosure shape is trapezoidal and offers a 22.5° coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibres and water repellent woven fabric backing. The cabinet is constructed of Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint. HL 2260 is weatherproof with protection code IP 55.
