EuroStage ES-2016 Mobile stage. 20' x 16'
EuroStage ES-2016 Mobile stage. 20' x 16'
Professional staging solution with 322 sq ft deck area. Perfect for concerts, events, and productions requiring portable, reliable staging.

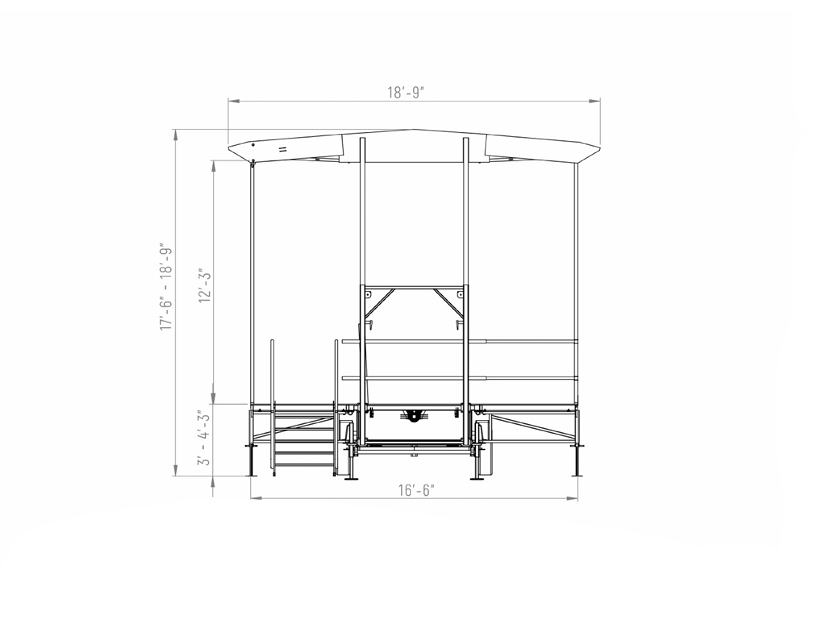

Stage Deck Specs:
Width: 19’-6”
Depth: 16’-6”
Area: 322 sf.
Deck Height: 3’-6” to 4’-6”
Total Height: 17’-6” to 18’-9”
Set up time 30-60 mins
Stage Accessories:
Speaker Flying Bay Kit
Banner Kit
Mesh Backdrop
Additional Add Ons:
PA systems
Lighting
Video Wall
Generators
Availability - Coming Soon - Inquire Today!
Stage Deck Specs:
Width: 19’-6”
Depth: 16’-6”
Area: 322 sf.
Load: 16,100 lbs. / 50 lbs. sf.
Deck Height: 3’-6” to 4’-6”
Roof Specs:
Width 20’-6”
Depth: 18’-9”
Deck to Truss: 12’-3”
Area: 384 sf.
Total Height: 17’-6” to 18’-9”
Capacity Specs:
Front Truss: 825 lbs. UDL
Center Truss: (2) 825 lbs. UDL
Back Truss: 825-2,000 lbs. UDL
Fly Bay: 5’ = 750 lbs. ea. CP
Roof: 4,800+ lbs. UDL
Lifting Limit: 2,000 lbs. UDL
Wind Specs:
Clark Reder HWAP / 67 MPH
Hydraulics:
Single piston w/12v hydraulic pump
Additional accessory addons available:
Speaker Flying Kit (750 pounds per side)
Banner Kit
Mesh Backdrop
Light-Bar Hangers
Anemometer Kit
Extra Stairs
Additional Platforms Kit
Add Ons:
PA systems
Lighting
Video Wall
Banners
Generators
Rental Terms:
Day Terms available.
Weekend Terms available.
Weeklong Terms available.
Mobile Service:
We provide a train technician with delivery for setup and breakdown of the mobile stage.
Delivery rates may be added on for long to very long distances. Early morning set up may come at additional charge.
Set up time for stage is approximately 20-60 mins once parked in location. Add Ons will add additional set up and break down time.
Location mapped out ahead of time is recommended.
Level terrain is required.
