Professional 64-Universe ONYX Lighting Control

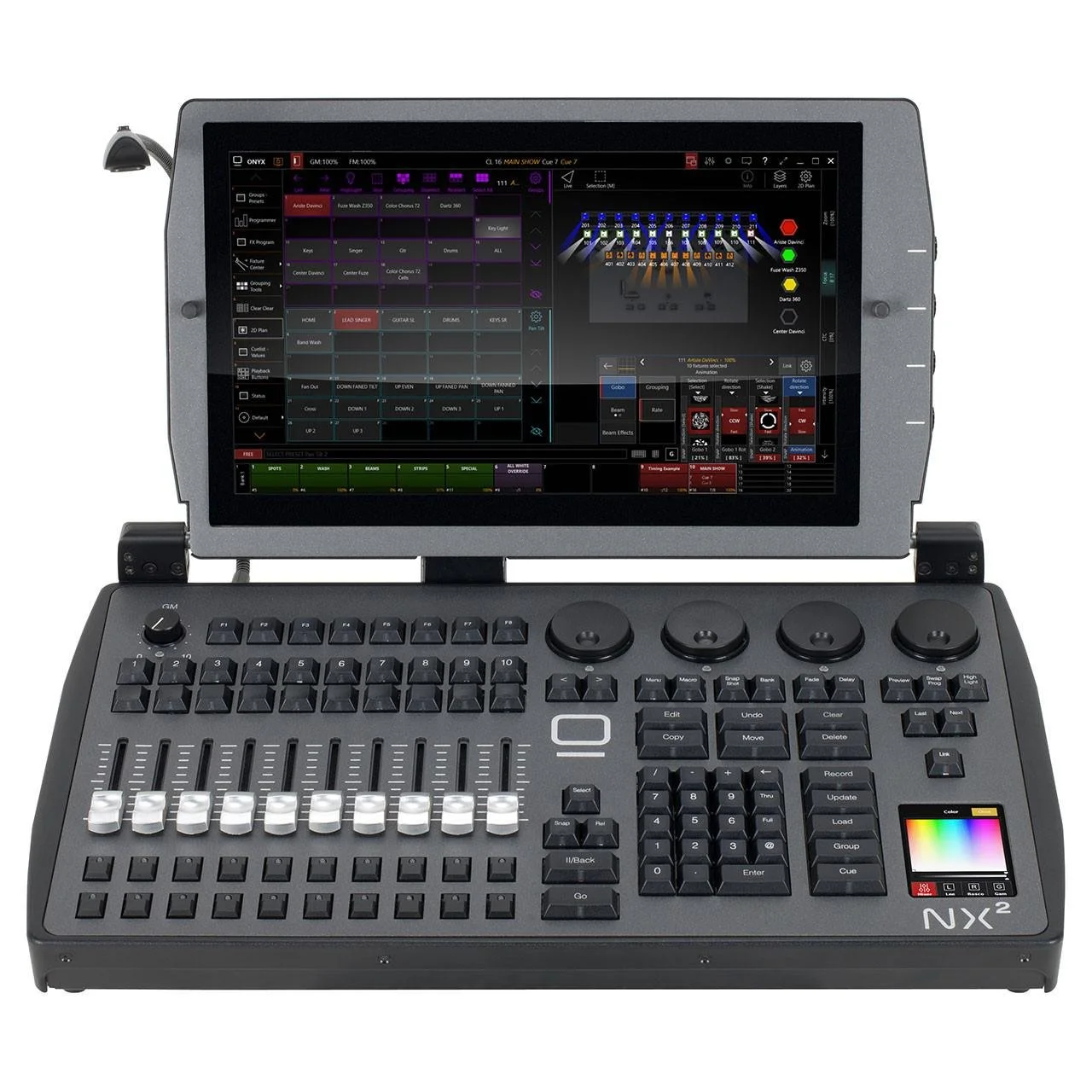

The Obsidian NX2 is a compact, fully integrated professional lighting console designed for concerts, festivals, theatrical productions, touring shows, and complex event lighting applications.

Running the ONYX lighting control platform, the NX2 provides integrated processing for up to 64 DMX universes without requiring separate external processing hardware. Four physical DMX/RDM ports provide direct fixture connectivity, while dual Gigabit Ethernet ports support Art-Net, sACN, and ONYX X-Net networking.

A 15.6-inch Full HD touchscreen, ten playback faders, eight parameter encoders, a secondary 3.5-inch touchscreen, and dedicated command controls provide an efficient programming and playback workflow.

With MIDI, SMPTE timecode, and support for two additional external 4K displays, the NX2 is well suited for professional lighting operators and production environments.

Key Features

• Professional ONYX lighting control console
• Integrated processing for up to 64 DMX universes
• 15.6-inch Full HD multi-touch display
• Secondary 3.5-inch RGB touchscreen
• 10 playback faders with assignable buttons
• 8 parameter encoders for fixture control
• Full numerical keypad and command section
• Dedicated grandmaster and playback controls
• 4 physical 5-pin DMX/RDM ports
• Dual Gigabit Ethernet network connections
• Art-Net, sACN, and ONYX X-Net support
• MIDI and SMPTE timecode connectivity
• Support for two additional 4K displays
• Integrated Intel Hexa-Core processor
• 16GB DDR4 memory and NVMe storage
• Professional programming and live playback workflow
• Compact design for touring and event production

Technical Specifications

The console supports up to 64 universes through its integrated processing and network outputs. Four physical DMX ports are available directly on the console. Additional physical outputs require compatible networked DMX hardware.

Specifications are based on published Obsidian Control Systems information. Features may vary with software revisions.

Ideal Applications

• Concert and festival lighting control
• Professional touring productions
• Moving head and LED fixture control
• Theatrical and stage performances
• Corporate events and conferences
• Live entertainment and special events
• Multi-universe DMX lighting systems
• Timecode-synchronized lighting productions

Optional Rental Accessories

• Professional DMX cables and extensions
• Art-Net and sACN network nodes
• Ethernet cables and network switches
• Additional touchscreen monitors
• ADJ moving head and LED PAR fixtures
• Lighting truss and rigging equipment
• Professional lighting programming services
• Lighting console operators and technicians
• Delivery, setup, and event operation

Accessories and services are quoted separately based on availability and production requirements.

Rental Terms & Equipment Care

All rentals are subject to Haye Productions' Rental Agreement & Policies. A certificate of insurance, valid identification, credit card for deposit, and signed rental agreement may be required before equipment release.

The Obsidian NX2 is an indoor-use electronic lighting console and must be protected from rain, moisture, excessive dust, spills, and extreme environmental conditions. Use properly grounded electrical power and suitable power protection.

Renters are responsible for proper console operation, secure handling, protection of touchscreen and control surfaces, and backing up their show files. Existing console configurations and stored show files must not be altered without authorization.

Renters are responsible for returning all rented equipment and accessories in good condition and on time.
