Allen & Heath DX168 Digital Stagebox - Rental
Allen & Heath DX168 Digital Stagebox - Rental
Allen & Heath DX168 professional 16-input, 8-output digital stagebox featuring 96kHz audio, remote-controlled microphone preamps, and dual EtherCON DX connections. Designed for Allen & Heath SQ, Avantis, and compatible dLive systems, the DX168 provides convenient stage-side audio connectivity for concerts, live bands, festivals, and corporate production.
Allen & Heath DX168 Digital Stagebox Rental
Rent the Allen & Heath DX168 professional 16-input, 8-output digital stagebox for concerts, live bands, corporate events, festivals, and professional audio production.
Featuring 96kHz audio, remote-controlled microphone preamps, and digital connectivity for compatible Allen & Heath consoles.
What's Included
- 1x Allen & Heath DX168 Digital Stagebox
- Power cable
Digital audio network cables, mixing consoles, and additional accessories are available separately unless specifically included in your rental agreement.
Rental Reservation Information
- Select your rental period from the available options.
- Click Reserve Rental to enter your rental dates.
- Complete the required rental agreement acknowledgment.
- Equipment availability is subject to confirmation.
Pickup, Delivery & Professional Services
Customer pickup is available by arrangement from Haye Productions in Phillipsburg, NJ. Professional delivery, setup, system configuration, and audio engineering are available by custom quote.
Professional Digital Stagebox

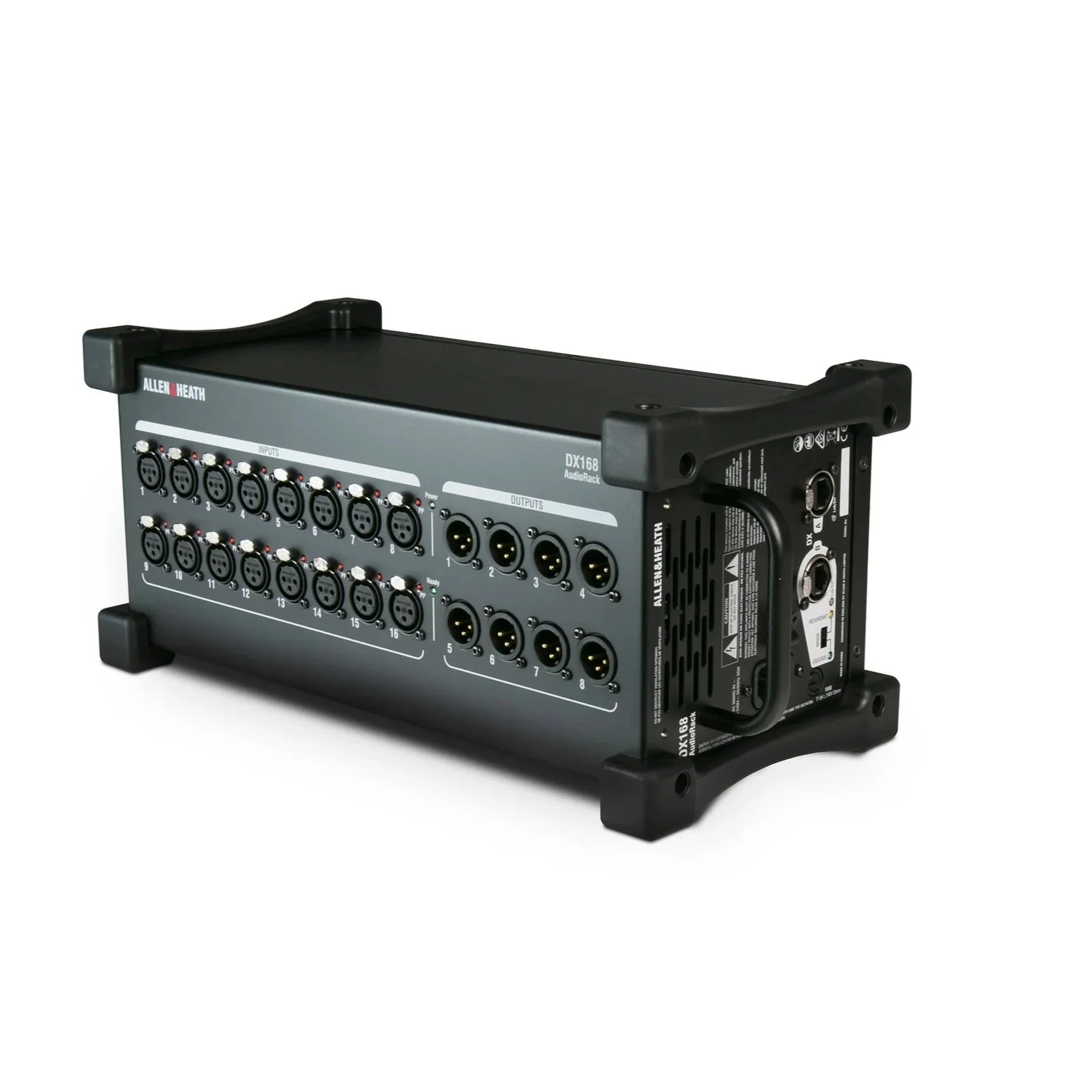

The Allen & Heath DX168 is a portable 96kHz digital stagebox designed to provide remote audio inputs and outputs for compatible Allen & Heath digital mixing systems.
Its compact, rugged design allows audio connections to be positioned near performers, reducing the need for long analog multicore cable runs between the stage and mixing console.
Key Features
- 16 remote-controlled XLR mic/line inputs
- 8 balanced XLR line outputs
- 96kHz digital audio operation
- Fully recallable microphone preamps
- Switchable +48V phantom power
- -20dB input pad for line-level sources
- Dual locking EtherCON DX connections
- Cascade mode for supported DX expanders
- Compatible with SQ, Avantis, dLive and supported 96kHz Qu systems
- Rugged portable enclosure with carry handle
- Optional rack mounting capability
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen & Heath |
| Model | DX168 |
| Device Type | Digital Stagebox / I/O Expander |
| Mic/Line Inputs | 16 Balanced XLR |
| Line Outputs | 8 Balanced XLR |
| Sample Rate | 96kHz |
| Mic Preamps | 16 Remote Controlled |
| Phantom Power | +48V |
| Input Pad | -20dB |
| Digital Connections | 2x EtherCON DX Ports |
| Maximum Cable Distance | 100m per supported connection |
| Power Supply | 100-240V AC, 50/60Hz |
| Power Consumption | 35W Maximum |
| Dimensions (W x D x H) | 16.1 x 7.5 x 7.3 inches |
| Weight | Approximately 10.1 lbs |
Compatible Mixing Systems
- Allen & Heath SQ-5, SQ-6 and SQ-7
- Allen & Heath Avantis systems
- Allen & Heath dLive systems with compatible DX connectivity
- Supported 96kHz Qu systems
- Other compatible Allen & Heath DX-capable systems
Connection method, firmware requirements, and available expansion capacity vary by mixing system. The DX168 is not a standalone mixer and requires compatible host hardware.
Ideal Applications
- Concerts and live band performances
- Festival stage audio distribution
- Corporate AV and conference systems
- Houses of worship
- Theater and school productions
- Remote stage and monitor positions
Optional Rental Accessories
- Allen & Heath SQ-5, SQ-6 or SQ-7 digital mixer
- Compatible shielded digital audio network cable
- Additional microphone and DI packages
- Professional audio engineer
- Delivery, setup, and system configuration
Accessories and services are quoted separately based on availability and event requirements.
Rental Terms & Equipment Care
All rentals are subject to Haye Productions' Rental Agreement & Policies. A certificate of insurance, valid identification, credit card for deposit, and signed rental agreement may be required before equipment release.
The stagebox must be protected from moisture, impact, and improper cable connections. Renters are responsible for proper handling, operation, and timely return in accordance with the rental agreement.
