RCF HDL 6-A 16-Box Complete Package for Sale | Flyable Line Array
RCF HDL 6-A 16-Box Complete Package for Sale | Flyable Line Array
Turnkey Professional Line Array System for Venues & Installations
This complete 16-module RCF HDL 6-A line array system is a fully scalable, installation-ready solution designed for houses of worship, schools, colleges, and entertainment venues seeking consistent, high-performance audio coverage.
Engineered for clarity, control, and fast deployment, this package delivers true line array performance with professional rigging hardware and cabling included—ready for permanent installation or mobile production use.
System Overview
A properly deployed 16-box HDL 6-A system provides:
✔ Even front-to-back coverage across large rooms
✔ Excellent speech intelligibility for spoken word environments
✔ Controlled vertical dispersion for reduced reflections
✔ Scalable configuration for different room sizes
✔ Clean, professional rigging for flown applications
This is a complete line array solution, not just individual speakers.
What’s Included

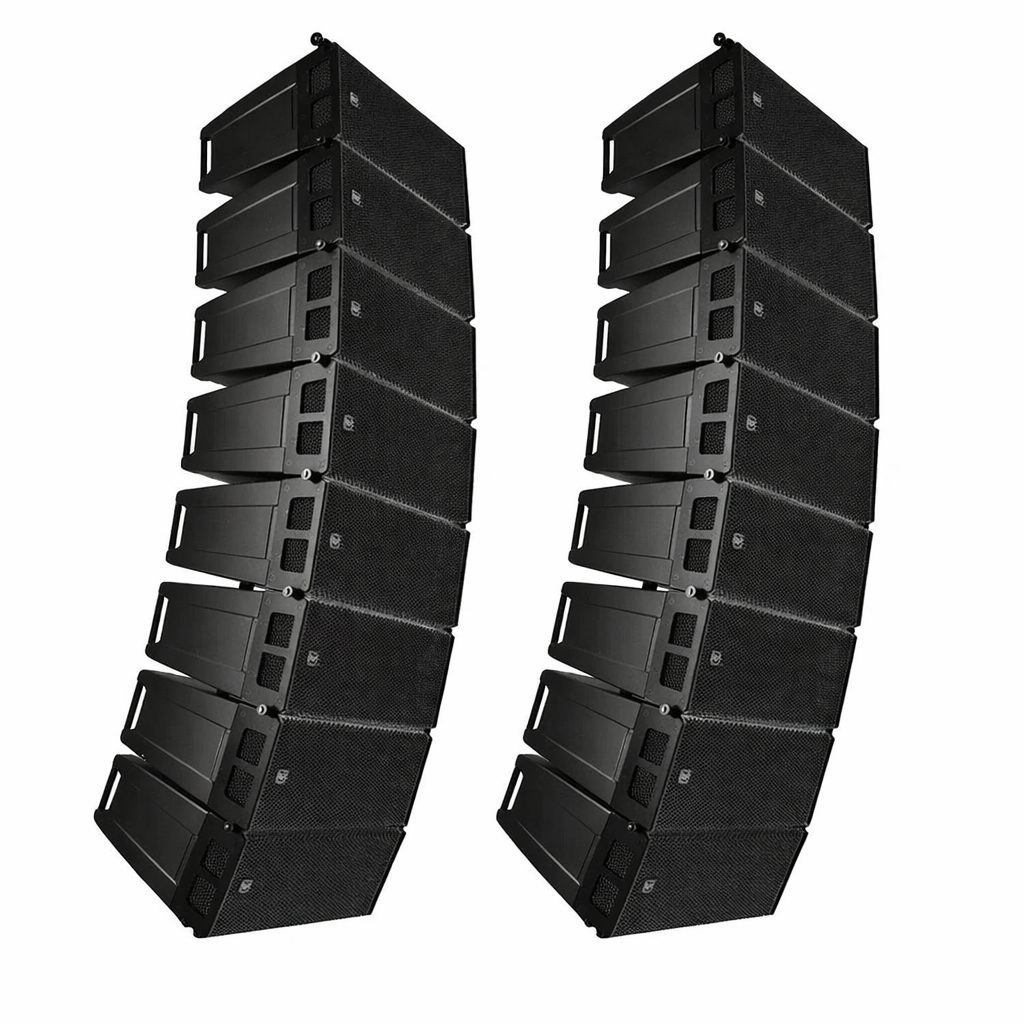

✔ (16) RCF HDL 6-A Active Line Array Modules
✔ (2) RCF Fly Bars (for secure flown array configuration)
✔ Array Linking Hardware (integrated rigging system)
✔ Power Cabling & Signal Wiring (system-ready)
✔ System Configuration Support Available (upon request)
Why This System
The HDL 6-A platform is widely used in installed and touring environments due to its balance of output, size, and ease of deployment.
Key Advantages:
• Consistent SPL across long distances
• Lightweight design for safer rigging
• Fast deployment with integrated hardware
• Clean visual profile for installed environments
• Reliable Italian-built components
Core Specifications (Per Module)
✔ 1400W Peak Class-D Amplification
✔ 131 dB Max SPL
✔ 100° x 10° Dispersion
✔ 1.7” Neodymium Compression Driver
✔ Dual 6” Neodymium Woofers
✔ 48 kHz / 32-bit DSP Processing
✔ FiRPHASE Time & Phase Alignment
✔ Symmetrical Cabinet Design
Ideal Applications
This 16-box system is perfectly suited for:
✔ Houses of Worship (speech clarity + music)
✔ School Auditoriums & Performing Arts Centers
✔ Colleges & Universities
✔ Corporate Event Venues
✔ Theaters & Entertainment Spaces
✔ Production Companies Scaling Inventory
Coverage Capability
A system of this size is ideal for:
• Medium to large venues
• Audiences ranging approx. 300–800+ attendees (depending on configuration & subs)
• Rooms requiring controlled vertical dispersion
System Expansion Options
For full-range performance, we recommend pairing with:
• RCF HDL 12-AS Flyable Subwoofers
• Ground-stacked sub configurations for extended low-end
We can assist with full system design, tuning, and optimization.
Installation & Support
We offer optional:
✔ System design & consultation
✔ Rigging guidance
✔ DSP optimization recommendations
✔ Delivery & setup coordination Serving NJ / PA / MD / NY (Upstate) Region
Shipping & Local Pickup
✔ Freight shipping available nationwide
✔ Secure palletized packaging
✔ Local pickup available in NJ / PA
✔ White-glove delivery options available
Why Buy From Us
We specialize in professional audio systems—not consumer gear.
If you're building or upgrading a venue, we can help you:
• Design the right system for your space
• Avoid costly under/over-buying
• Ensure proper deployment from day one
RCF HDL 6-A 16-Box Line Array System Package for Sale | Complete Flyable Line Array | NJ / PA
Black & white
The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound.
When a brighter look of the system is needed, HDL 6-A is available in white color
Custom designed waveguide
The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response.
Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
Symmetrical design
Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.
The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.
The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
The ideal flyable bass complement
The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a powerful 1400W Class-D amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated.
Acoustical specifications
Frequency Response: 65 Hz - 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 10°
Transducers
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c
Input/Output section
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: +4 dBu
Processor section
Crossover Frequencies: 900 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: HF correction
Power section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance
Safety agency: CE compliant
Physical specifications
Cabinet/Case Material: PP Composite
Hardware: Array fittings
Handles: 2 Back
Grille: Steel
Color: Black, White
Size / Weight
Height: 237 mm / 9.33 inches
Width: 470 mm / 18.5 inches
Depth: 377 mm / 14.84 inches
Weight: 11.6 kg / 25.57 lbs
