JBL SRX910LA – Dual 10" Powered Line Array Loudspeaker
JBL SRX910LA – Dual 10" Powered Line Array Loudspeaker
⭐ Key Features
Dual 10" neodymium Differential Drive® woofers
3" neodymium compression driver for high‑frequency accuracy
135 dB max SPL with powerful, clean output
Built‑in Class‑D amplification (600W continuous)
Universal power supply with passively cooled design
User‑controllable DSP with LevelMax limiting
Dual Ethernet ports with Neutrik etherCON connectivity
Supports HARMAN HControl Ethernet for networked system control

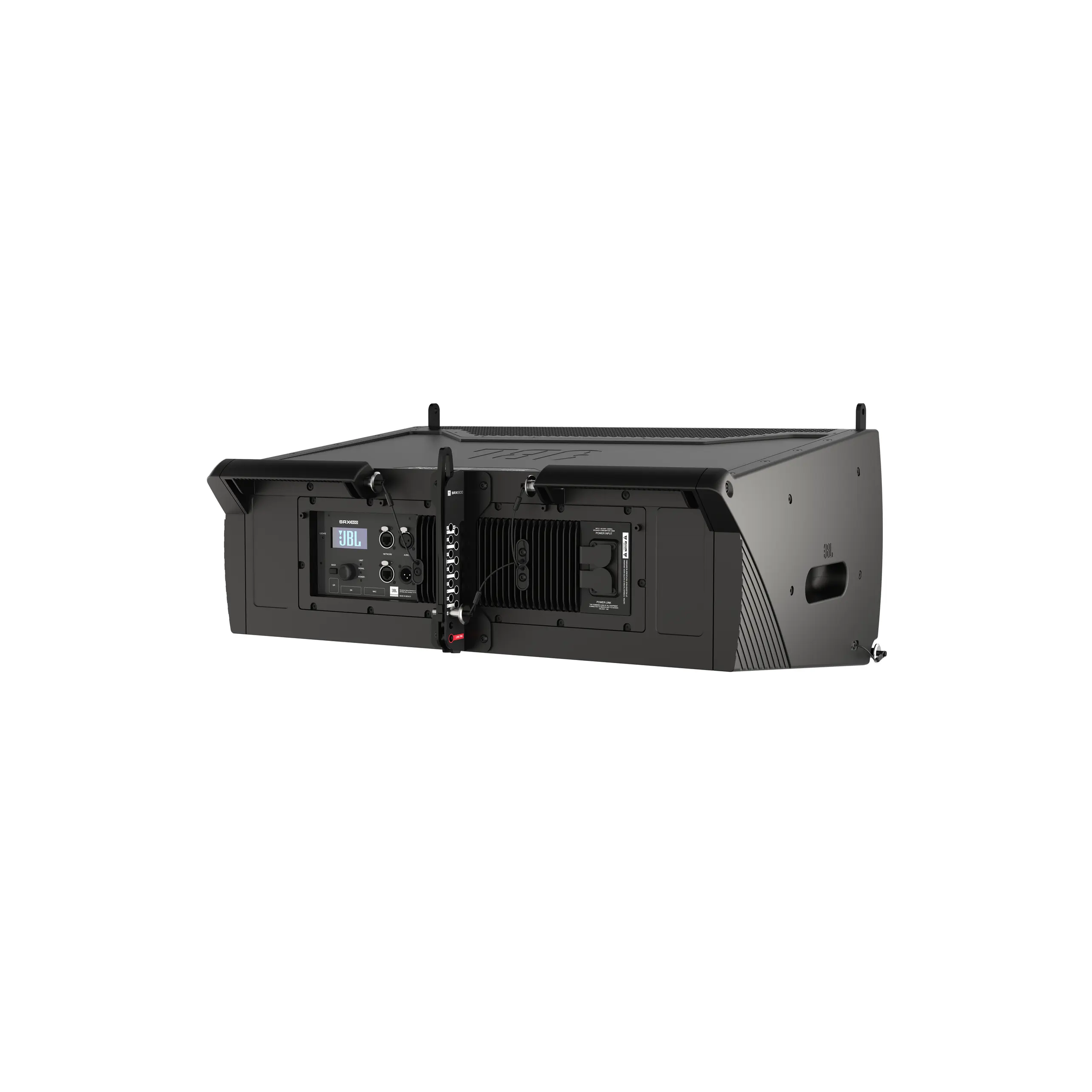

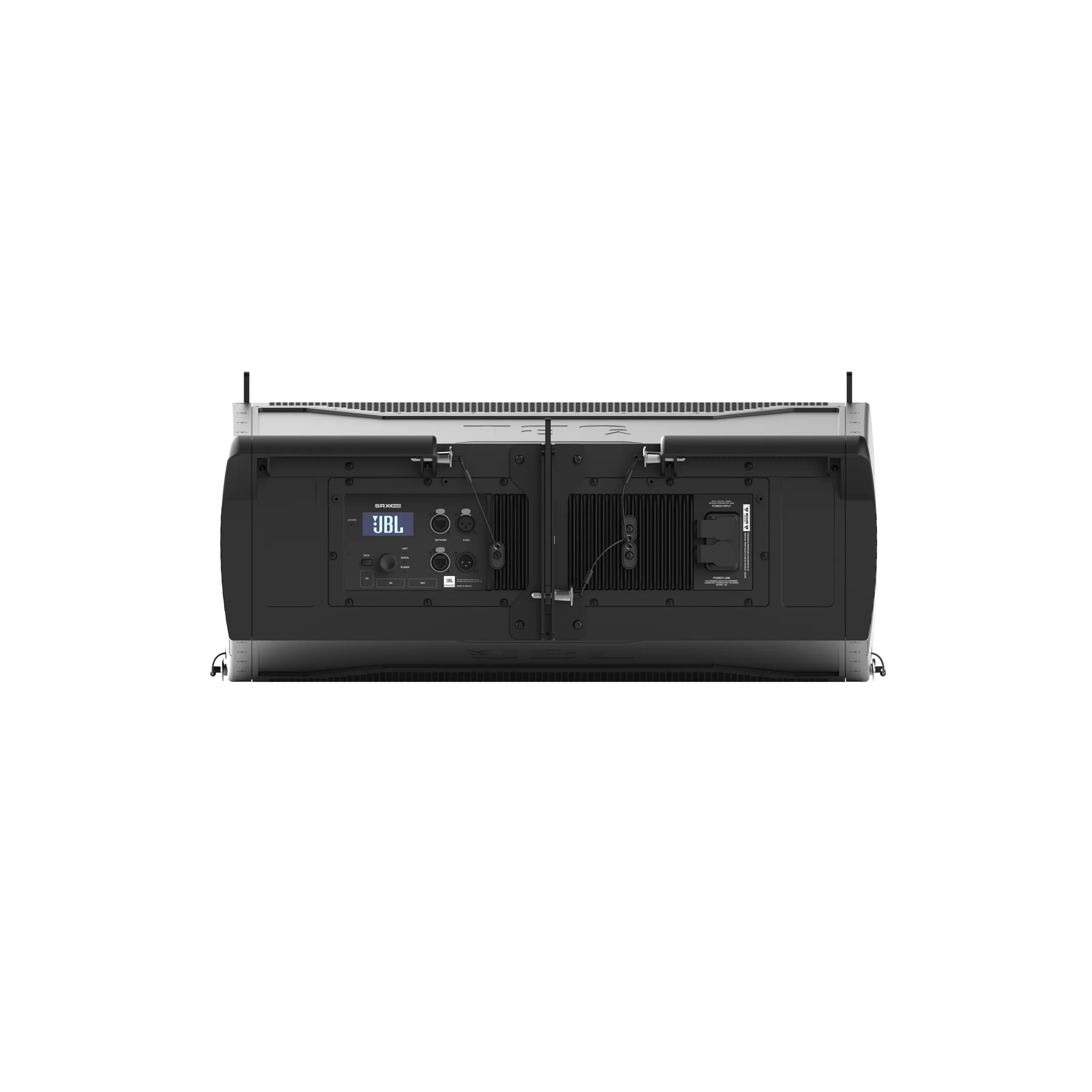

Rear LCD for onboard configuration and monitoring

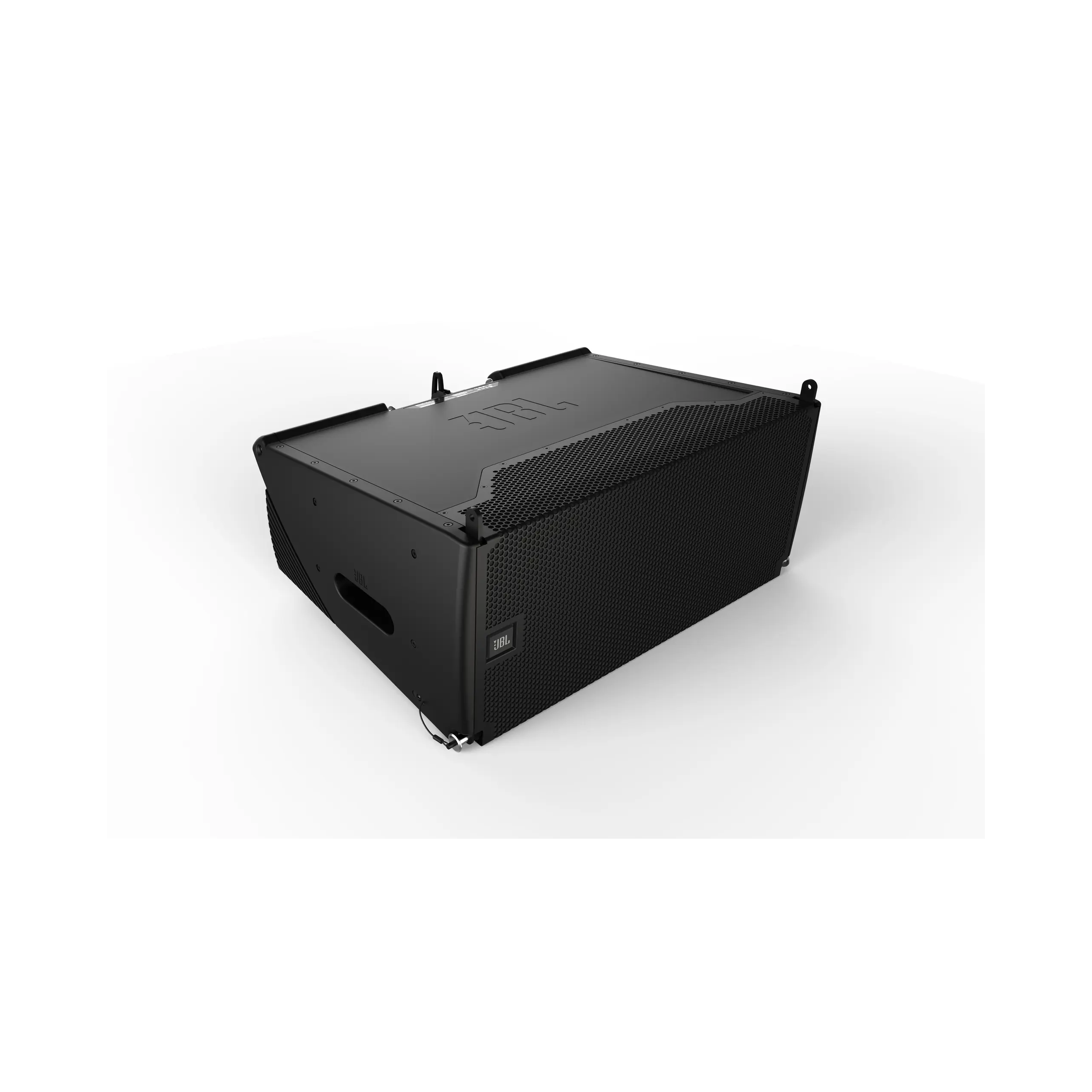

Reinforced composite enclosure with aluminum baffle & internal bracing
Four recessed handles for easy transport

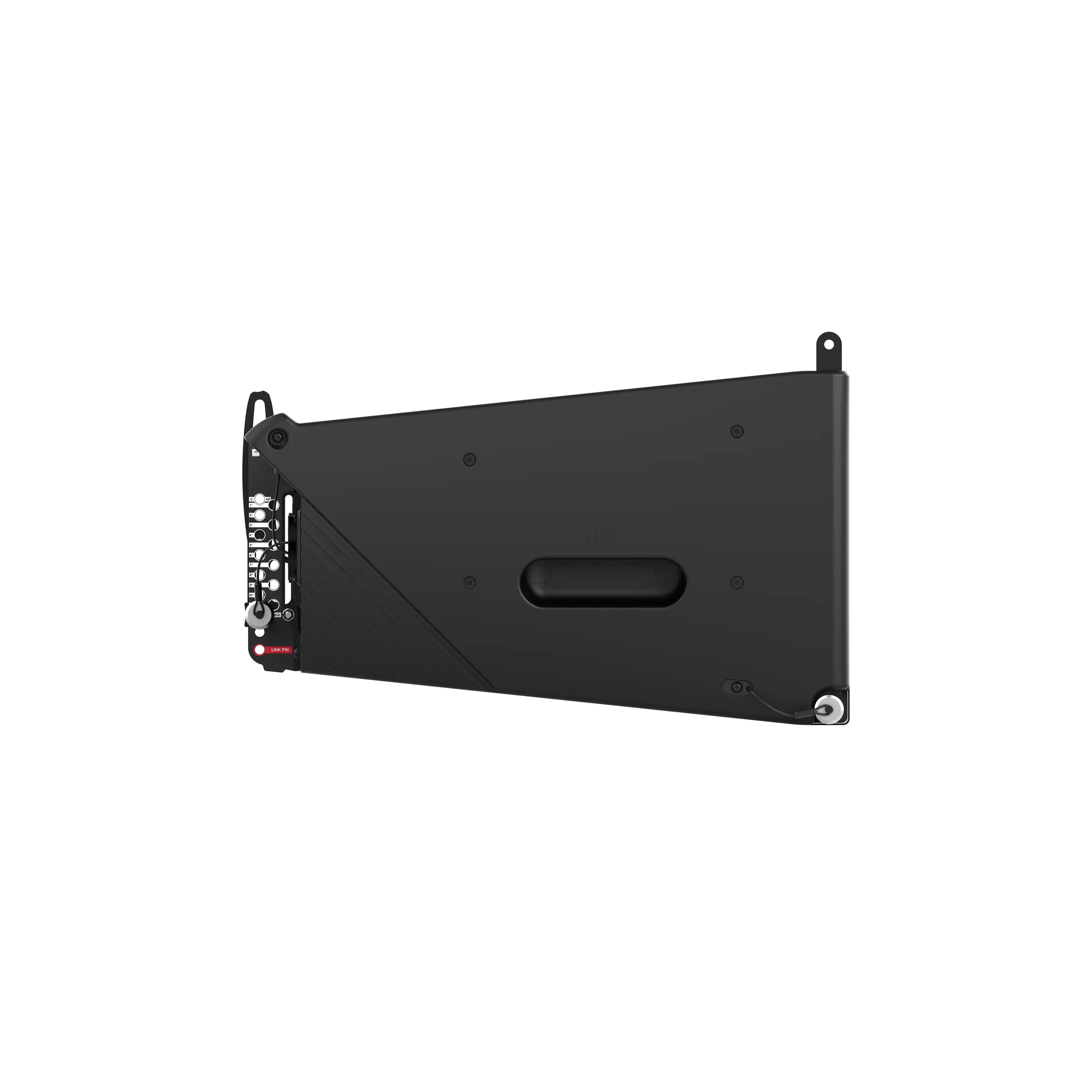

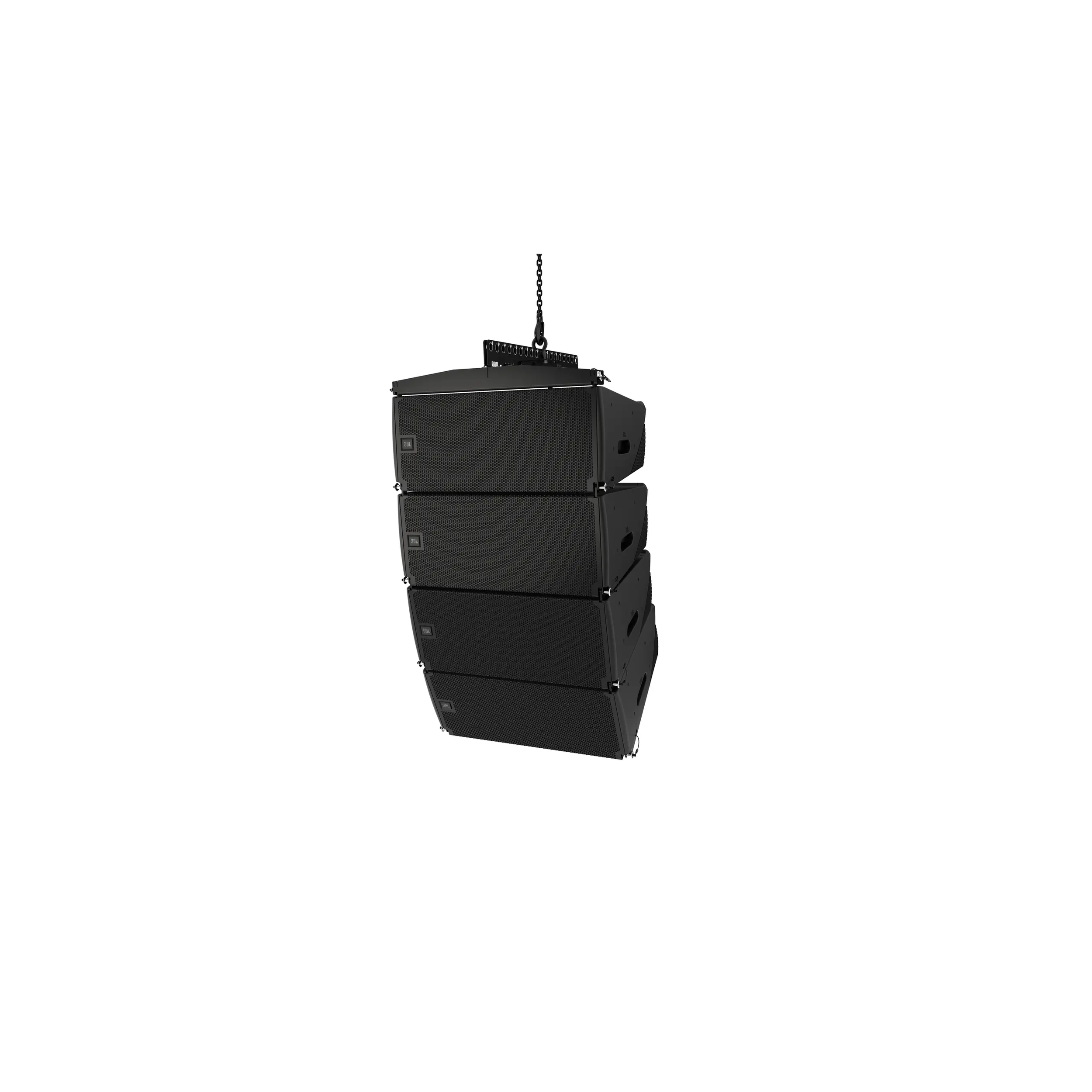

Innovative 3‑point rigging system for fast, precise deployment
Compatible with full SRX900 accessories & software
JBL SRX910LA – Dual 10" Powered Line Array Loudspeaker
The JBL SRX910LA is a next‑generation, dual 10‑inch powered line array loudspeaker engineered for production companies, touring artists, DJs, and installation environments that require high output, superior clarity, and scalable system design. As part of the advanced JBL SRX900 Series, this two‑way active module delivers exceptional performance for mid‑ to large‑format sound reinforcement applications.
Designed with JBL’s latest acoustic innovations, the SRX910LA features neodymium Differential Drive® transducers, a 3‑inch compression driver, and a computer‑optimized composite enclosure reinforced with an aluminum baffle and internal bracing. The result is best‑in‑class SPL, outstanding fidelity, and a rugged, lightweight cabinet built for real‑world touring demands.

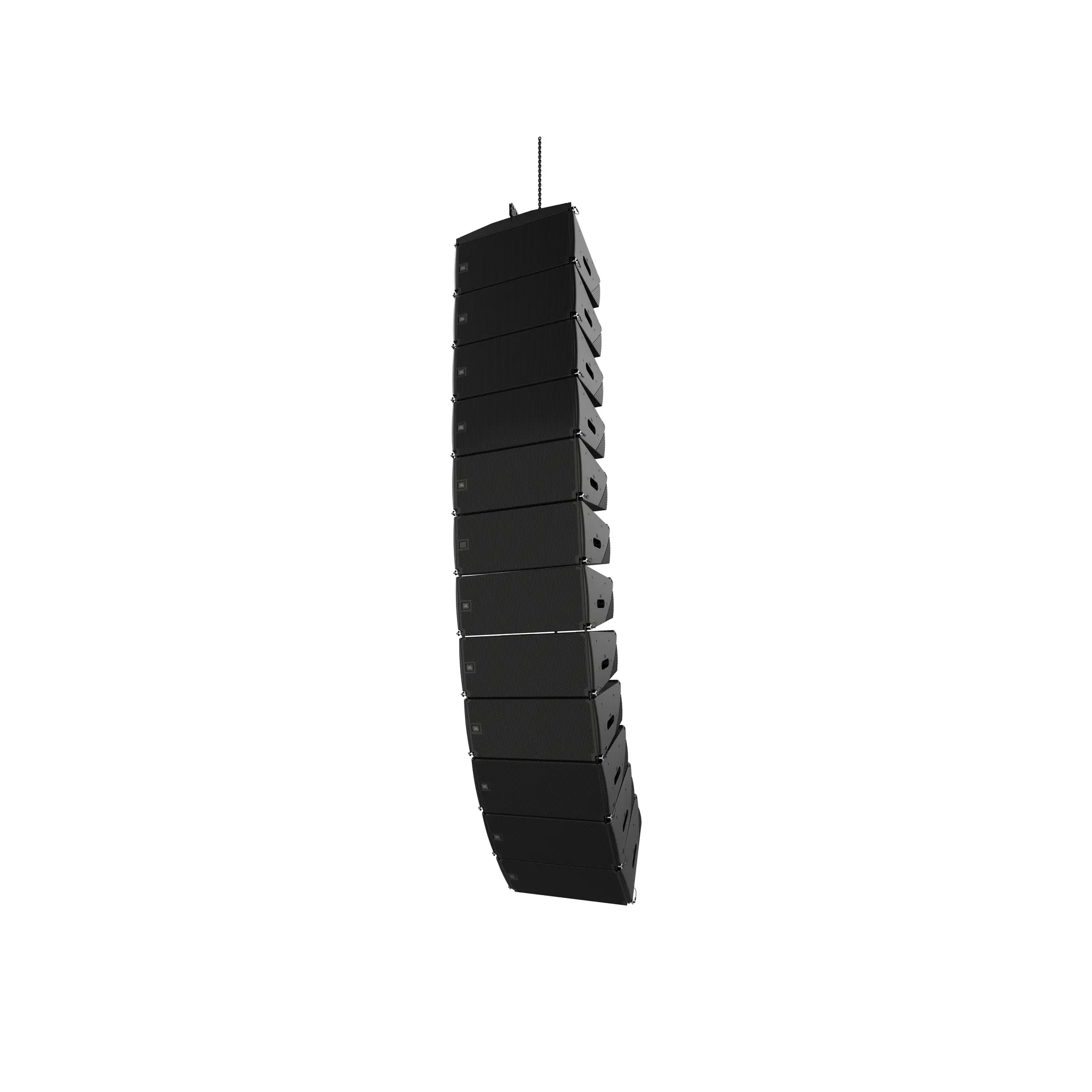

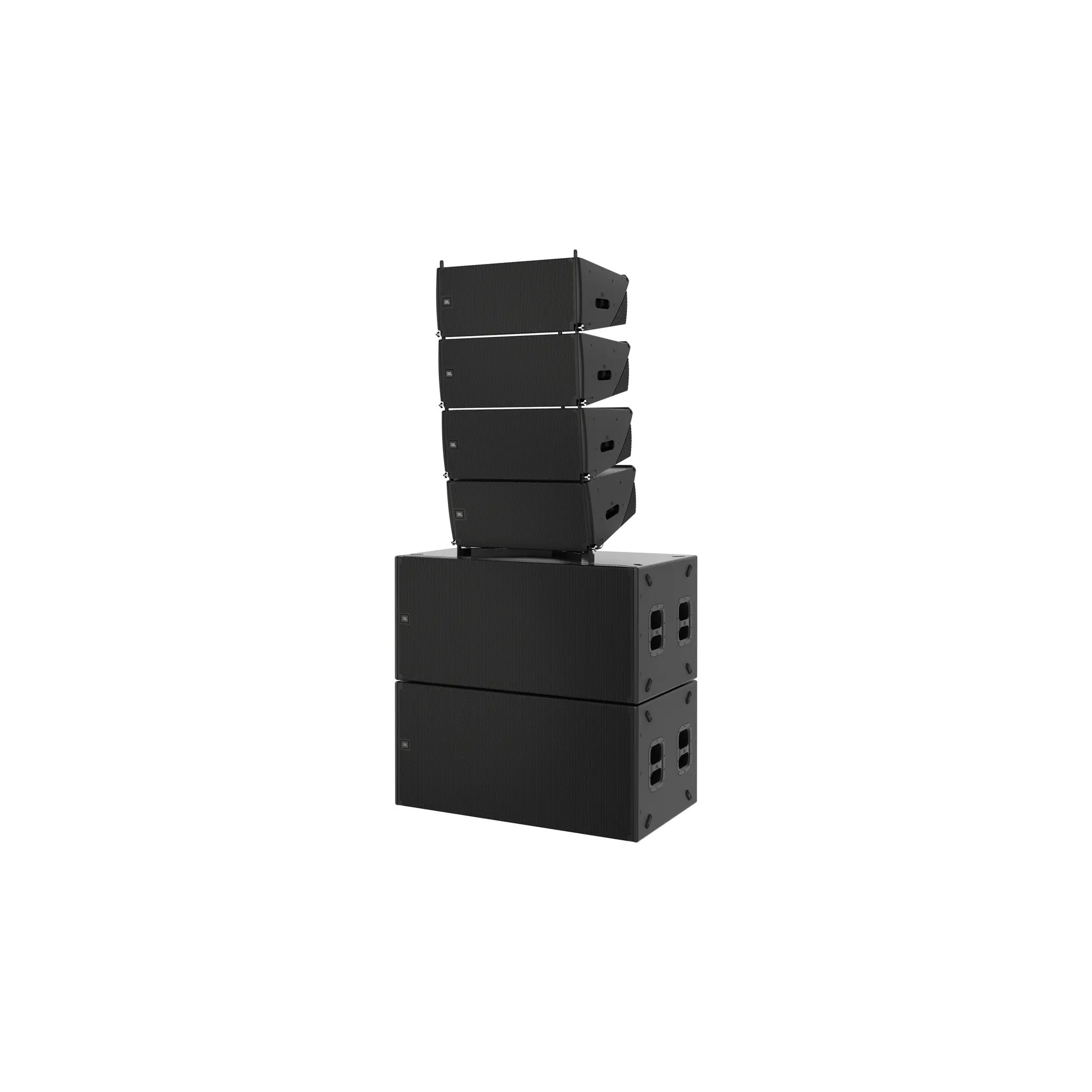

With built‑in Class‑D amplification, universal power supply, LevelMax limiting, and full DSP control through JBL Performance software, the SRX910LA provides a true plug‑and‑play professional solution for scalable flown or ground‑stacked systems.
Frequency Range (‑10 dB): 53 Hz – 19 kHz (array preset)
Coverage Pattern: 105° nominal (400 Hz – 16 kHz)
Maximum SPL: 135 dB
System Type: Two‑way active powered line array
Amplifier Design: Class‑D
Continuous Power Rating: 600W total
LF: 400W
HF: 200W
LF Drivers: (2) JBL 261G‑1, 10" neodymium Differential Drive® woofers (dual 2" voice coils)
HF Driver: JBL 2432H‑3, 1.5" exit neodymium compression driver with 3" voice coil
Enclosure: Polypropylene with aluminum baffle, plywood internal bracing, four recessed handholds
Inter‑Enclosure Angles: 0.5° – 12°
Dimensions (H × W × D): 12.0" × 28.2" × 20.5" (305 × 716 × 519 mm)
Net Weight: 59 lbs (26.7 kg)
